One Touch Fittings (Stainless Steel)
- Series WM5 One Touch Fittings (Stainless Steel) – Ø4 & Ø16 mm
- Attractive design
- Compact size
- Threaded nipples of male elbow fittings enable to by 360 degree
- Full area of the inner bore of the tubing is available for flow of fluid
- Stainless steel design ensures superior clamping by bubble tight sealing of various tubes
- Suitable for different materials of tubing (Nylon (Polyamide), Soft Nylon, Polyurethane, Polyethylene)
- Easy and quick push-in connection of tube / easy removal of tube by simple pressing of collet cap
- Maintenance free and long life
- Short parallel threaded connection
- Male thread seal – BSP – PTFE seal
- No loosing of tube due to vibration – positive gripping by the collet

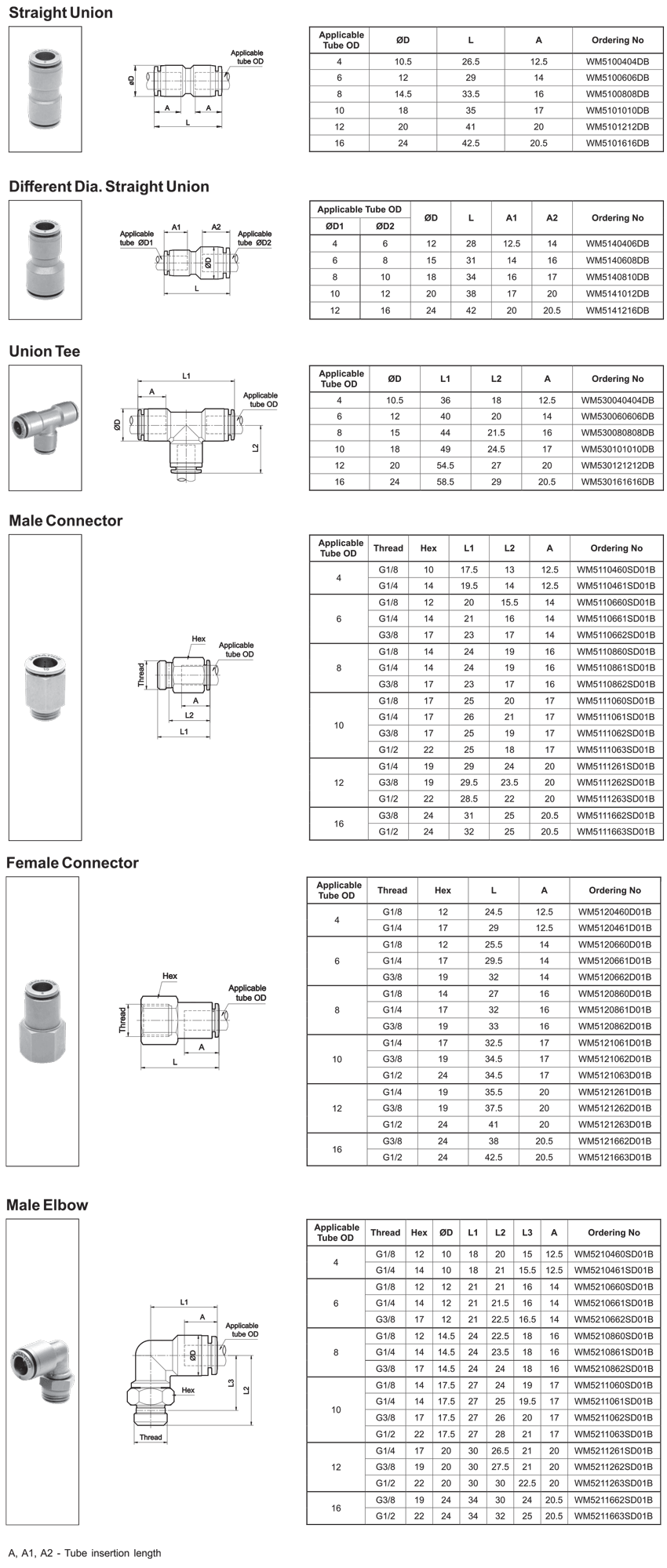

While ordering fittings, mention the ordering number given in the corresponding tables, and tubes mention the ordering number with required length in metres.
