Rotary slide valve G1/2
- Series DR – G1/2
- Easy handle movement and precise control of the direction
- Compact and lightweight design

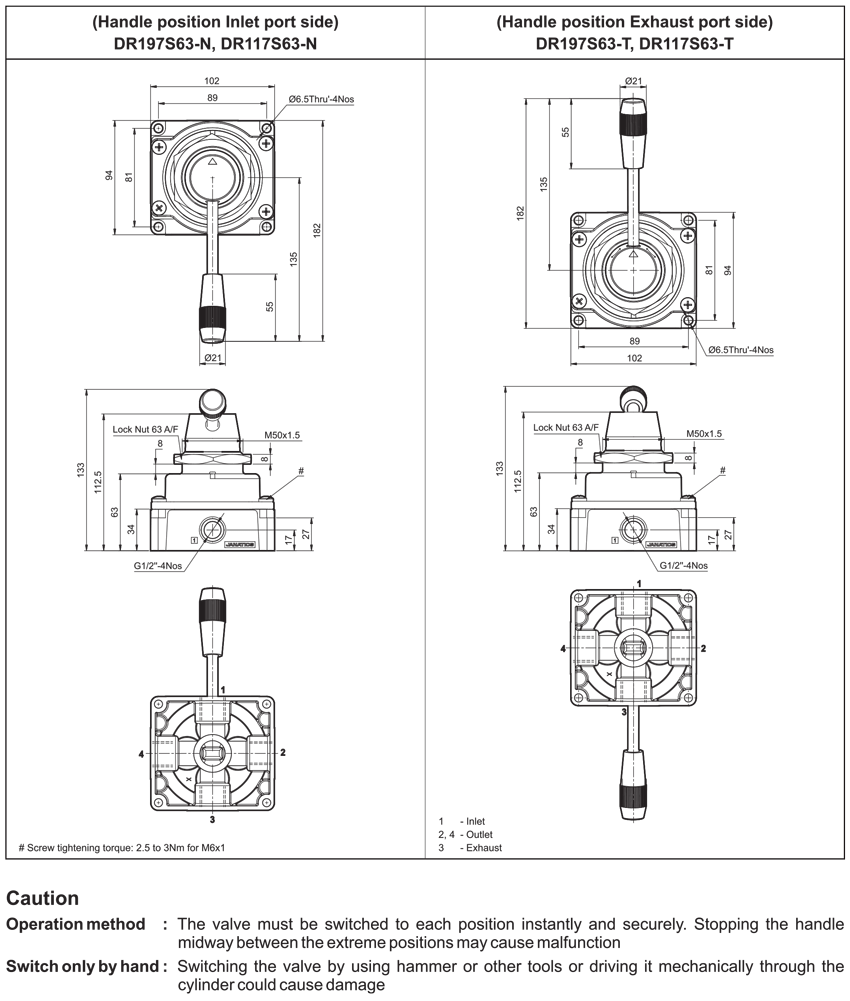

- Handle position available in two types ( Ref. Fig.1 & Fig.2)
- Both body mounting and Panel mounting is possible
- Good flow characteristics
Ordering Example:
The ordering no. for 4/3 Rotary slide valve – 1/2″ (Handle position inlet port side) – DR197S63-N
