External solenoid pilot

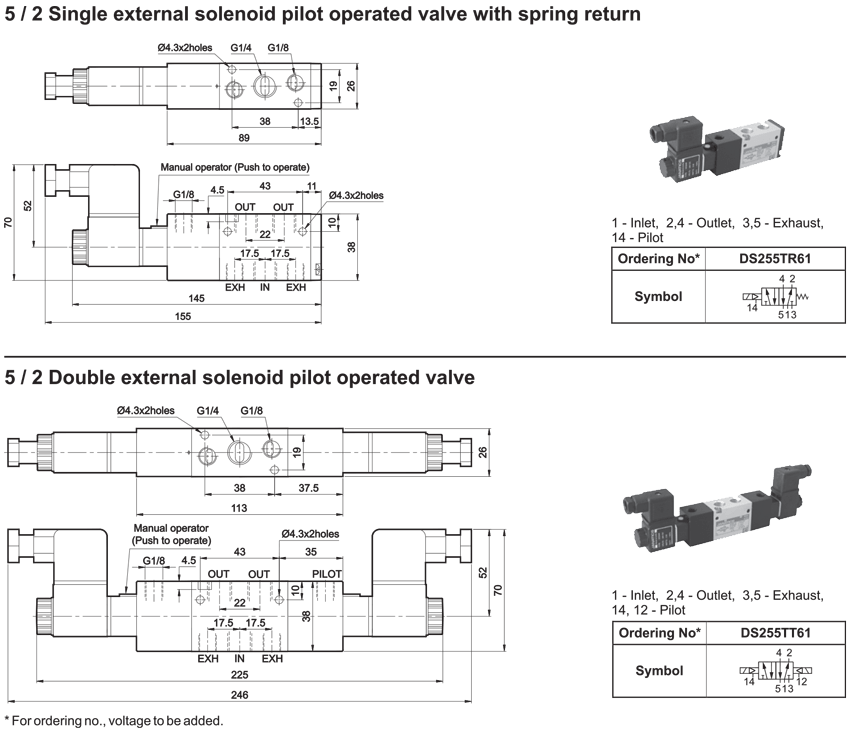

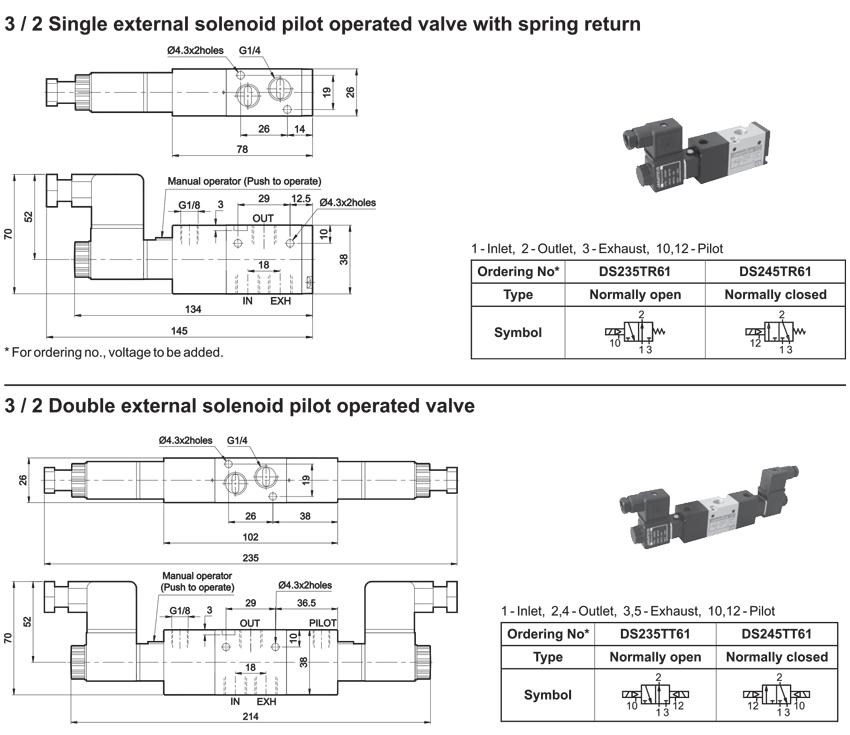

- Compact Valve – G1/4 (External solenoid pilot operated valves)
- Suitable for manifold mounting
- Mounting provision for individual unit
- Compact size
- Manual override
- Wide range of manifolds available
- Wide range of coil voltages
Important
To prevent malfunctioning of the valve while operating the manual override (or) while operating the solenoid coil, ensure to have a minimum air supply of 800 lpm to the valve through a tube of minimum Ø8 outer diameter (with minimum Ø5.5 internal diameter)
