3/2 Direct acting NC valve - 22mm

Home / Products / FA Pneumatics / Directional Control Valves / Direct Acting Valves / 3/2 Direct acting NC valve – 22mm

3/2 Direct acting NC valve – 22mm

Ask Quote Download Brochure
  • SOLENOID VALVE E4 Series – 3 / 2 Direct acting normally closed valve (22 mm)
  • Modular type valve
  • Wide range of coil voltages
  • Continuous duty cycle
  • Low temperature of operation
  • Noiseless performance
  • Manual operator – Push type
  • Gang mounting type

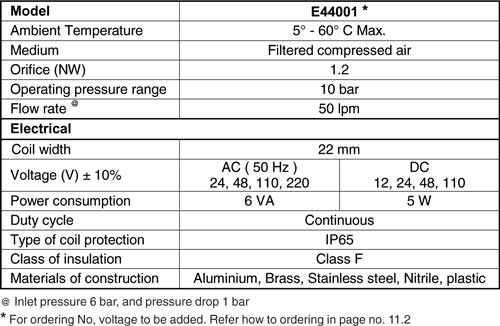

Technical Specifications Table

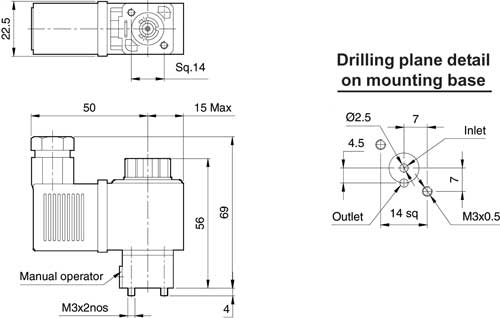

Dimensions Table

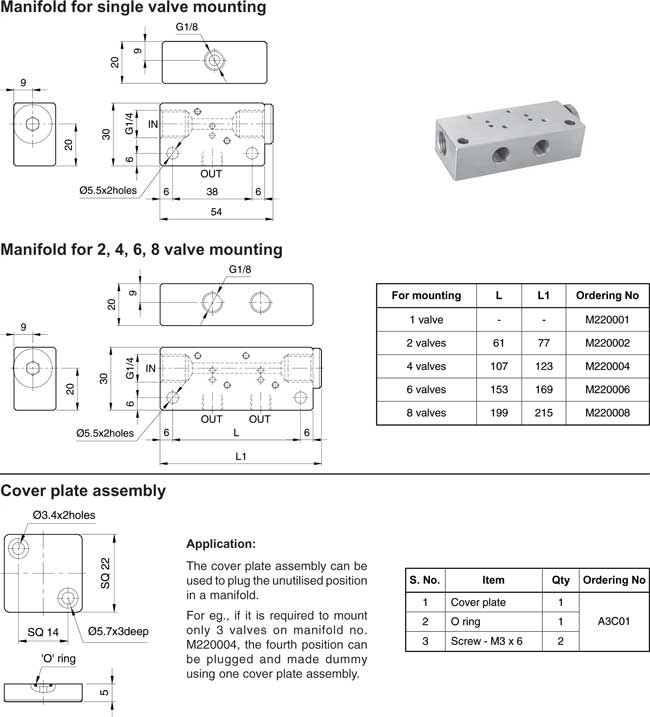

Manifolds

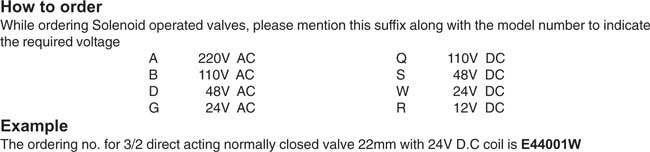

How to order guide
