Angle seat valve

Home / Products / FA Pneumatics / Directional Control Valves / Angle seat valve

Angle seat valve

Ask Quote Download Brochure
  • Series DY2 – G12, G3/4
  • Low pressure loss due to Angle seat structure
  • Pilot air port position rotatable by 360°
  • High flow
  • Body material different versions – Brass, SS304 and SS316
  • Visual indicator for actuating position

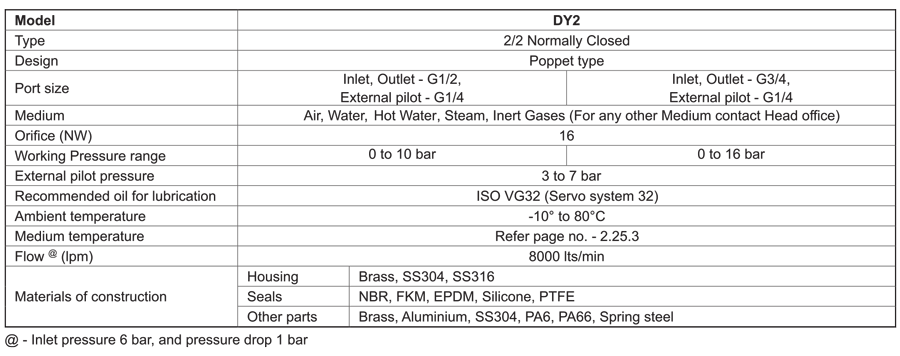

Technical Specifications Table

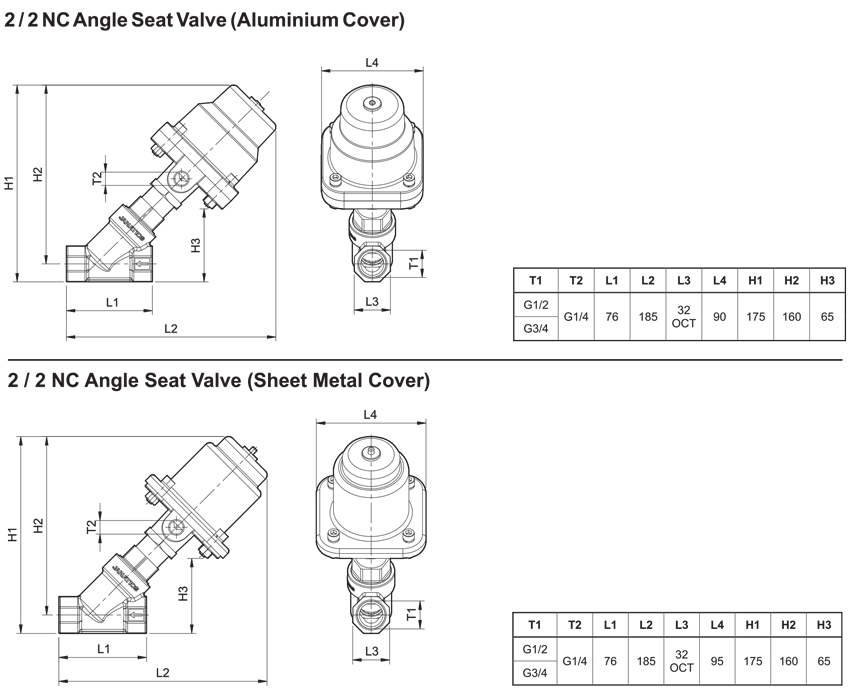

Models Table

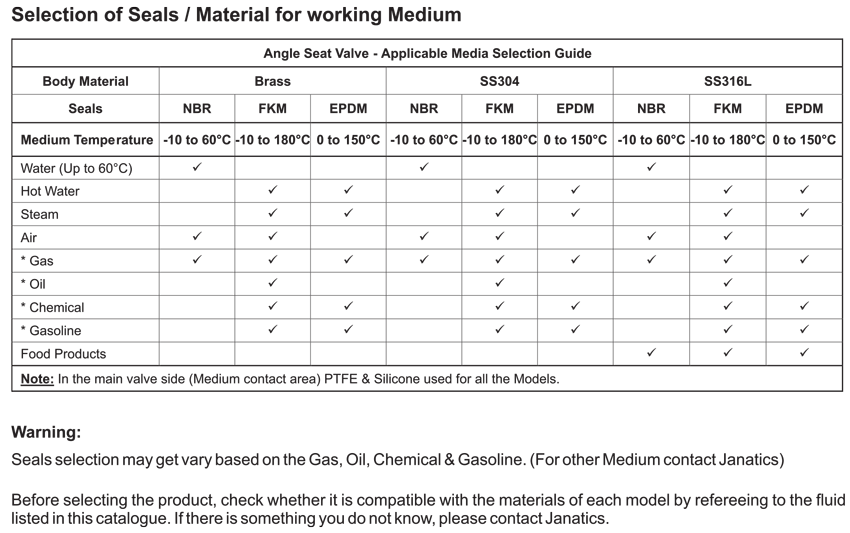

Selection of Seals / Material Table

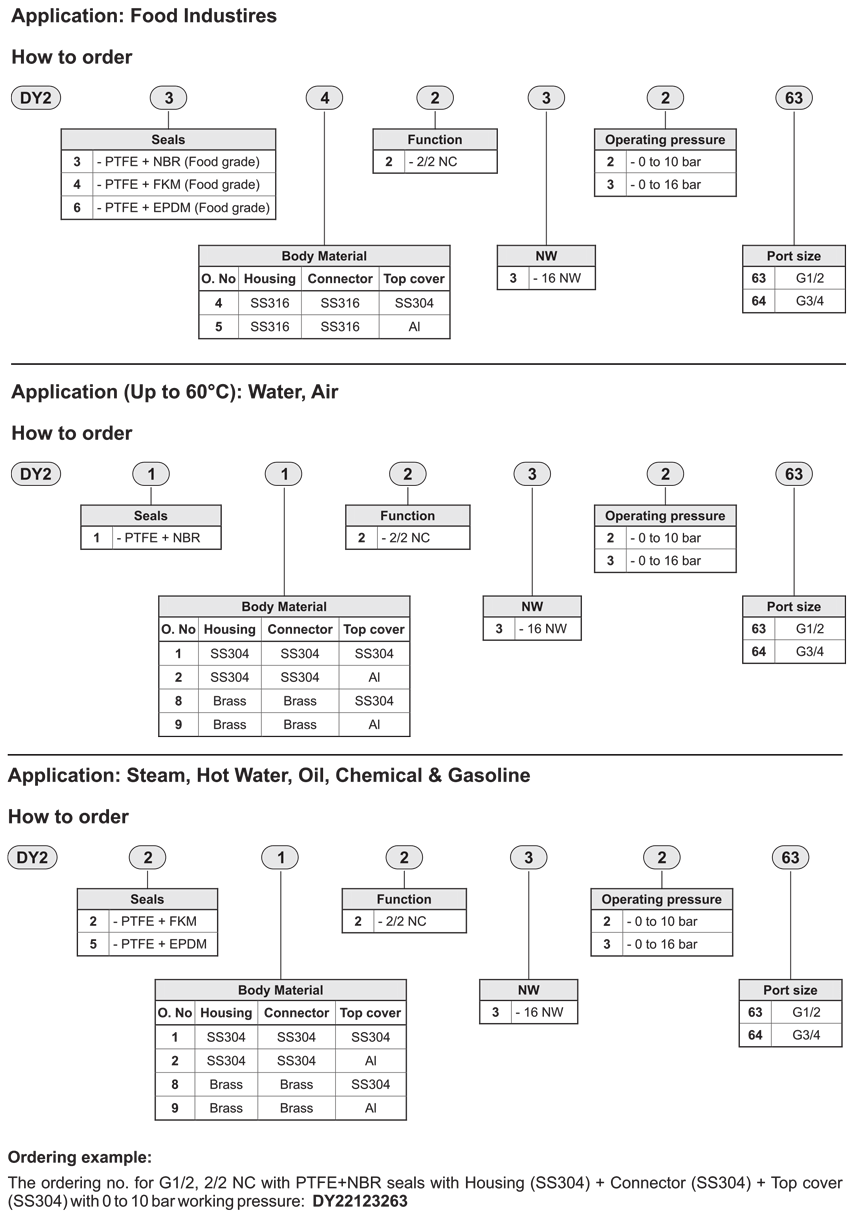

How to order Table
