Push Pull Operated Valve 1/4 NPT

Push Pull Operated Valve 1/4 NPT

  • COMPACT VALVE – NPT 1/8 (G1/4) Series DS2
  • 3/2 NC and NO Valves & 5/2 valves
  • Compact size
  • Suitable for panel mounting
  • Mounting provision for individual unit

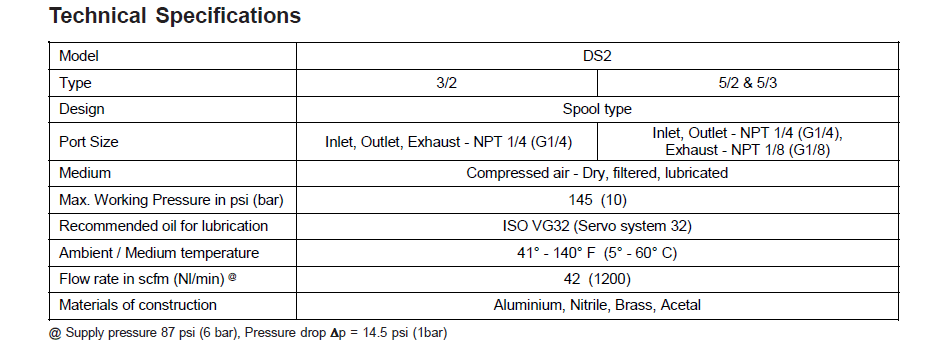

Technical Specification Table

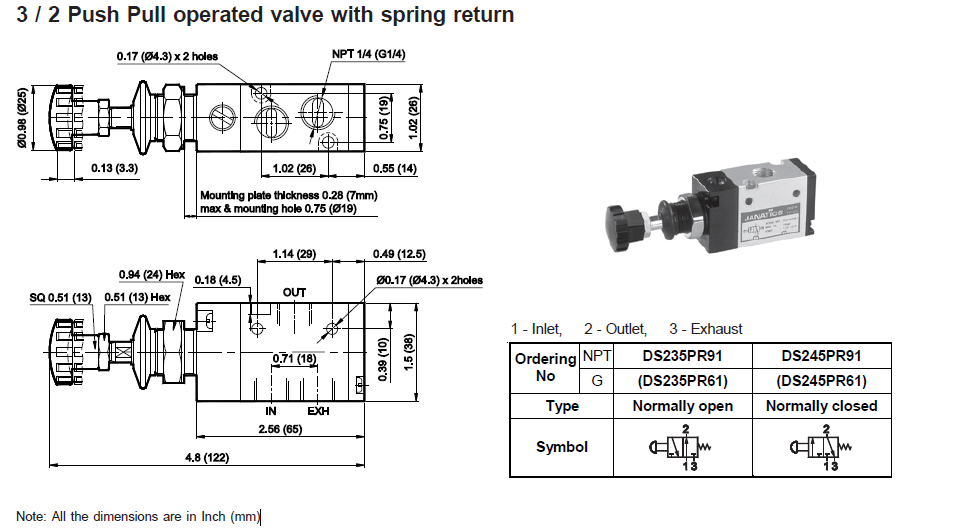

3/2 Push Pull Valve

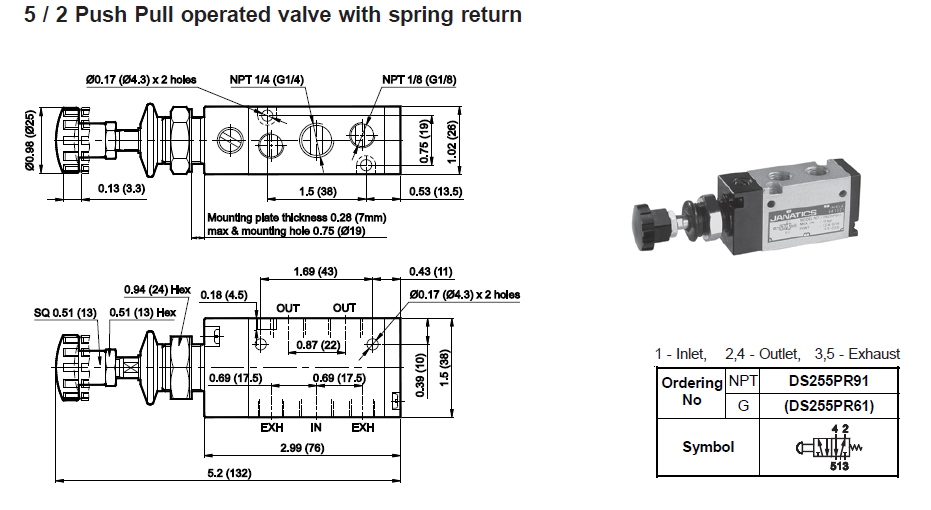

5/2 Push Pull Valve

How to Order: While ordering valve, mention the ordering number given in the corresponding tables.
