Compact Valve NPT 1/4
- COMPACT VALVE – NPT 1/4 DS2 Series

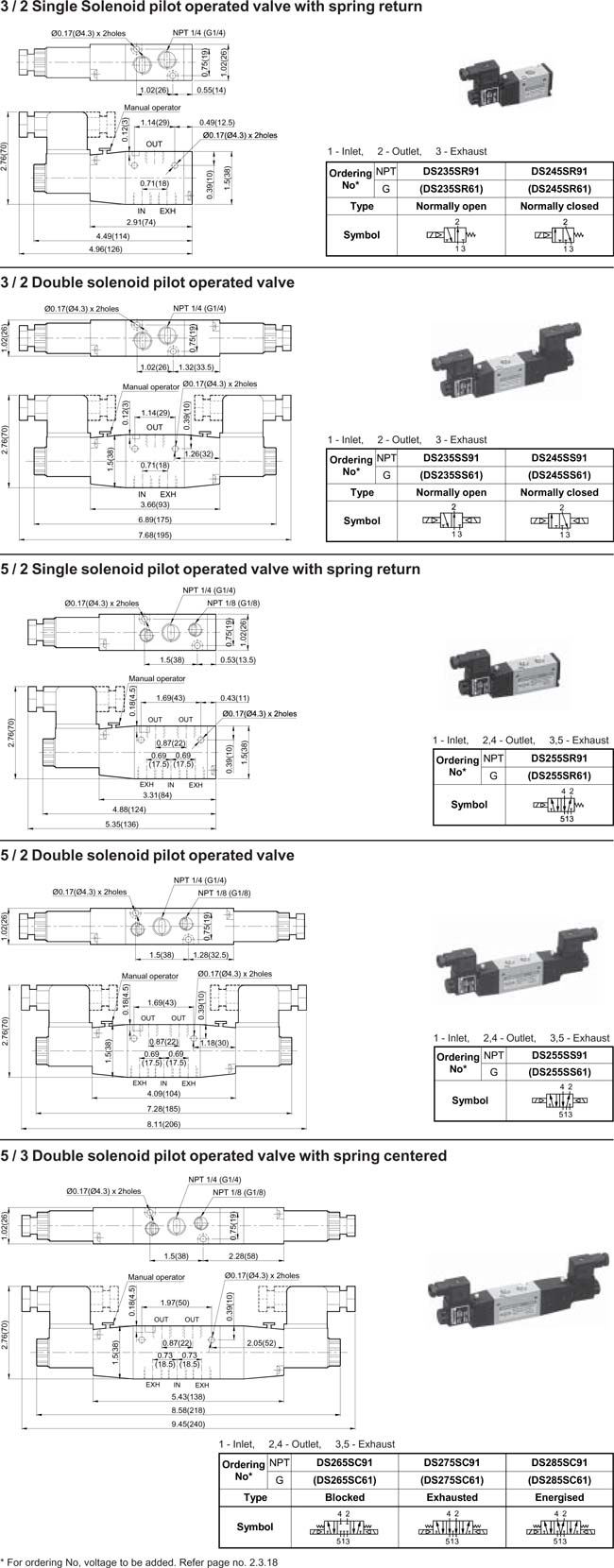

- 3/2, 5/2, 5/3 valves

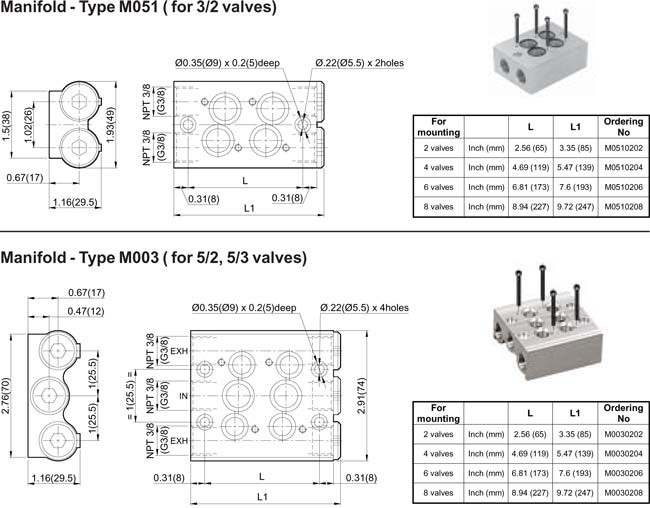

- Suitable for manifold mounting
- Mounting provision for individual unit
- Compact size
- Manual override

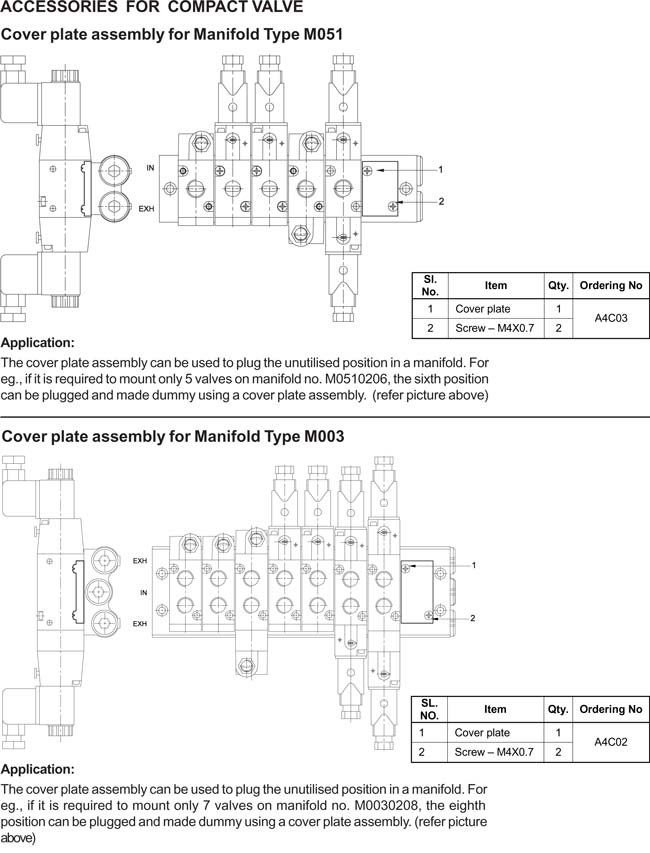

- Wide range of manifolds available
- Wide range of coil voltages
- Important
- To prevent malfunctioning of the valve while operating the manual override (or) while operating the solenoid coil, ensure to have a minimum air supply of 1200 lpm to the valve through a tube of minimum Ø8 outer diameter (with minimum Ø5.5 internal diameter)
