Pneumatic | Profile Series
Features
- Sleek design
- Easy to use, and pick & place of the trainer components is very effortless
- Extruded aluminium mounting board not only improves aesthetics, also makes the pick and place of components easier, thus enabling the user to concentrate more on testing the circuit rather than placing the components
- Individual aluminium profiles of size 40 mm x 40 mm can be used to convert the board into a table
- The mounting board is modular and is being used globally in many educational institutions in setting up a World Class Pneumatic Lab
Advantages
- Suitable for polytechnic and engineering syllabus for various disciplines like Mechanical, Mechatronics, Production and Instrumentation
- Suitable for companies having ISO & TPM training systems
- The Pneumatic Trainer Kit and the systematic programme structure framed by JANATICS will explain from the scratch till the latest in industry
- Since pneumatics is used in every industry like food, pharma, textile, engineering, automobile, etc. Training in this subject enables the students to know the latest trends in industrial automation and also makes the placement for the students easier
JTK-KITA (Basic pneumatic package)
This is a mandatory basic package that includes basic pneumatic products like Air cylinder, FRL, Multi distributor units, One touch fittings, Final control elements, Tubes etc.,
- Function of air preparation units filter, regulator and lubricator
- One touch fittings and tubing for easy connect and disconnect

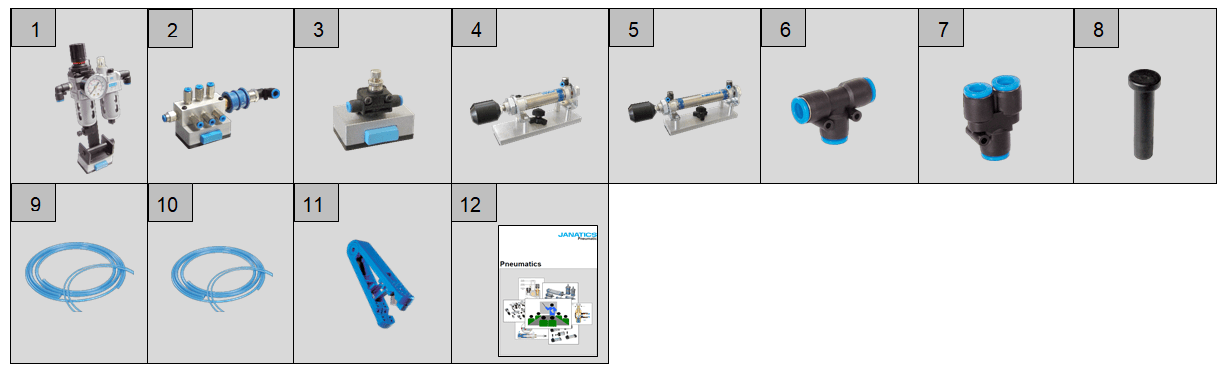

| Sl.No | Item Description | Part No | Quantity |
|---|---|---|---|
| 1 | FRL Unit with pressure gauge | MP0000 | 1 |
| 2 | Junction box with Slide valve | MP0001 | 1 |
| 3 | Flow control valve unit | MP0010 | 4 |
| 4 | Single acting cylinder (SAC) | MP0014 | 1 |
| 5 | Double acting cylinder (DAC) | MP0018 | 2 |
| 6 | Union tee Dia4 | WP2300404 | 4 |
| 7 | Union Y Dia4 | WP2400404 | 4 |
| 8 | Plug Dia4 | WP2600400 | 6 |
| 9 | Tube (PU) OD8 (blue) | WH00B08 | 5 meter |
| 10 | Tube (PU) OD4 (blue) | WH00B04 | 10 meter |
| 11 | Tube cutter | WC1 | 1 |
| 12 | Pneumatics – Text book | T101 | 1 |
