FRLM with Metalbowl

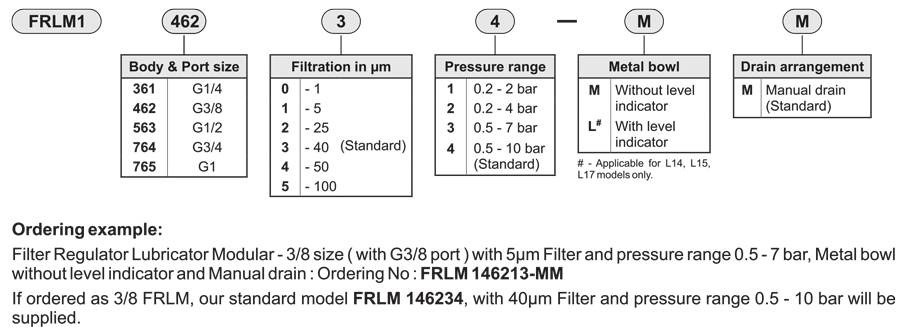

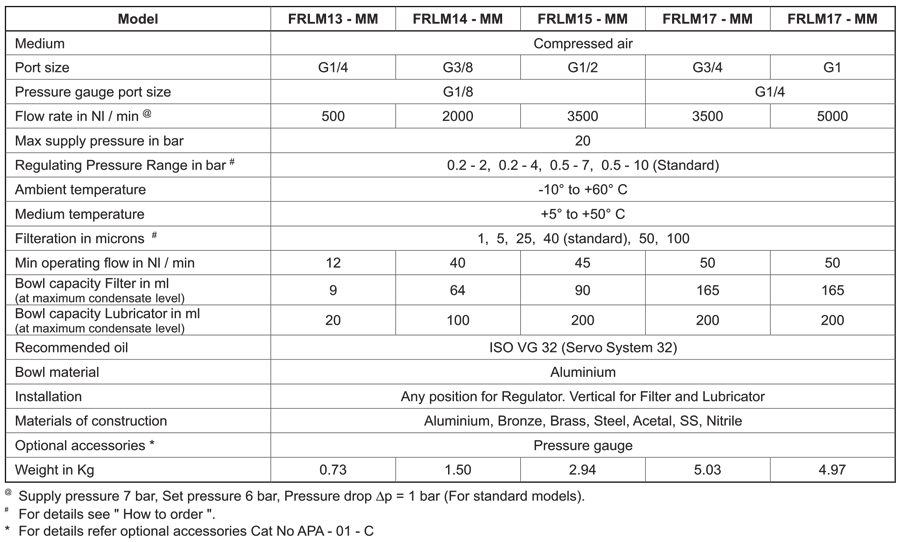

- FRLM1-MM series – Sizes : G1/4, G3/8, G1/2, G3/4, G1
- For higher pressure range above 10 bar
- Modular type for easy and fast maintenance
- Suitable for wall mounting
- Filter
- Bronze filtering element
- Separator and shield for efficient moisture separation
- Press type manual drain for easy operation
- Regulator
- Diaphragm operated, relieving type
- Pressure compensated by Balanced poppet
- Flow compensated (with venturi) in models FRLM14, FRLM15 and FRLM17 for faster response
- Non raising Press to Lock adjusting knob for locking at any set pressure
- Lubricator
- Fog/Mist type Lubricator
- Fine adjustment of lubrication
- Lubrication proportional to flow
- Metal bowl
- Aluminium
- Bayonet type on FRCLM17 Models
- Direct mounting type on FRLM 13, FRLM14, FRLM15 models

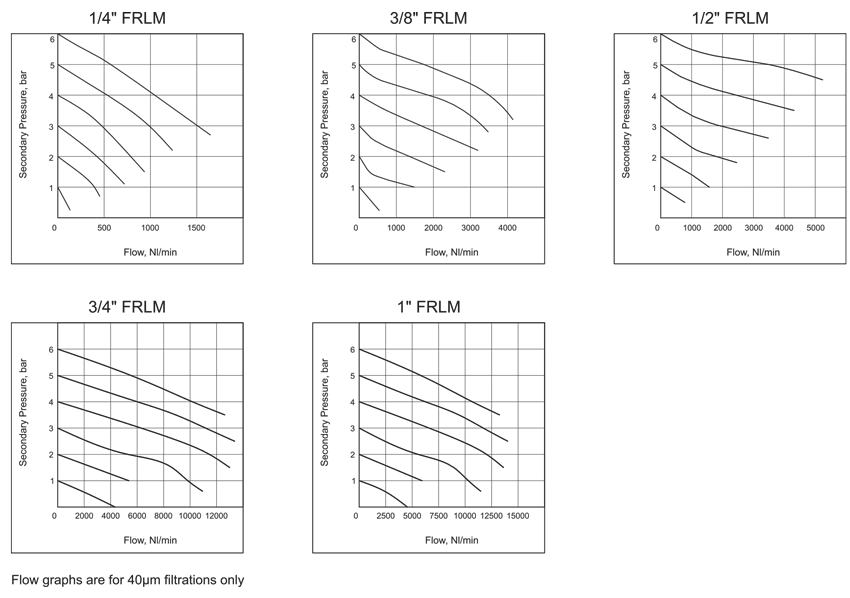

- Good flow and regulating characteristics
These type of filters are used for Chemical, Paint shops, Pharmaceutical, Foundry etc.
- Note the direction of flow before installation and connect piping accordingly.
- Flush pipings for dirt, dust, rust and other foreign particles.
- Install in clean atmosphere.
- Nipples of taper threads ( R ) to be used with teflon tape. Ensure teflon tape does not enter the unit during tightening. Nipples of straight threads ( G ) to be used with sealing washer.
