FRLM with Internal Autodrain

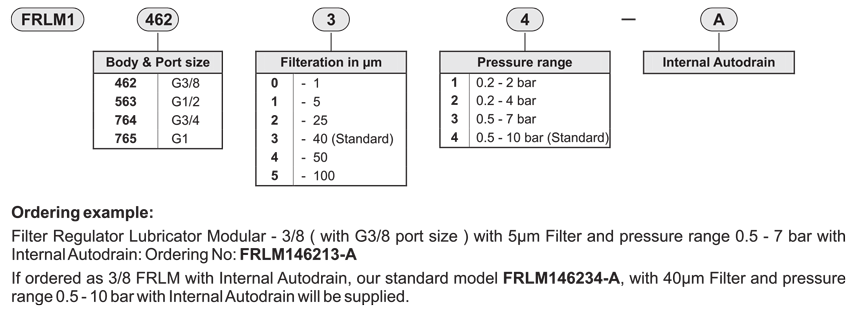

- FRLM1A series – Sizes : G3/8, G1/2, G3/4, G1
- Modular type
- Suitable for panel mounting
- Filter
- Bronze filtering element
- Separator and shield for efficient moisture separation
- Bayonet type steel bowl guard
- Internal Autodrain
- Float type, no electrical connections required
- Provided with manual drain
- Provision for drain tube connection, to take the condensate away from the unit, to keep the working area clean
- Regulator
- Diaphragm operated, relieving type
- Pressure compensated by balanced poppet
- Flow compensated ( with venturi ) for faster response
- Non raising Press to lock adjusting knob for locking at any set pressure
- Lubricator
- Fog / Mist type Lubricator
- Fine adjustment of lubrication
- Lubrication proportional to flow
- Steel bowl guard, bayonet type on FRLM14, FRLM15 & FRLM17 models

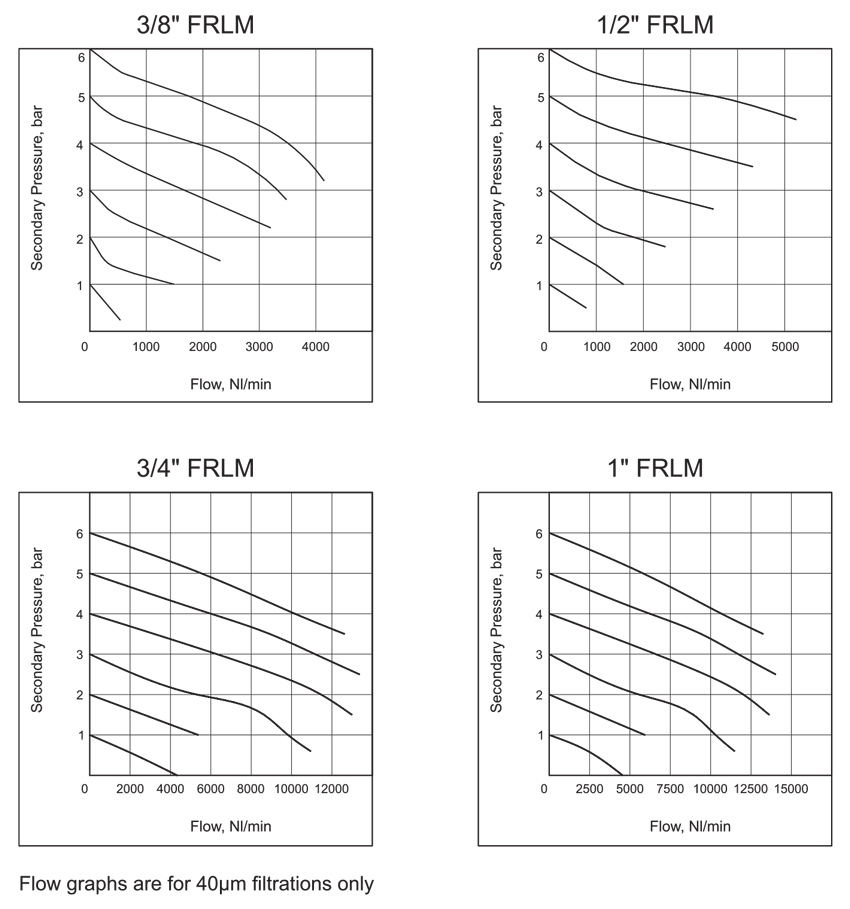

- Good flow and regulating characteristics
- Note the direction of flow before installation and connect piping accordingly.
- Flush pipings for dirt, dust, rust and other foreign particles.
- Install in clean atmosphere.
- Nipples of taper threads ( R ) to be used with teflon tape. Ensure teflon tape doesnot enter the unit during tightening. Nipples of straight threads ( G ) to be used with sealing washer.
- Polycarbonate bowls may get damaged and possibly fail if exposed to synthetic oils, thinner, solvents, trichloroethylene, kerosene or other aromatic hydrocarbons.
