Regulator Built in NRV NPT
- R1N Series – Air Regulator (With built in Non Return Valve) – Sizes NPT 1/4, 3/8, 1/2
- Conform to ISO 6953 1

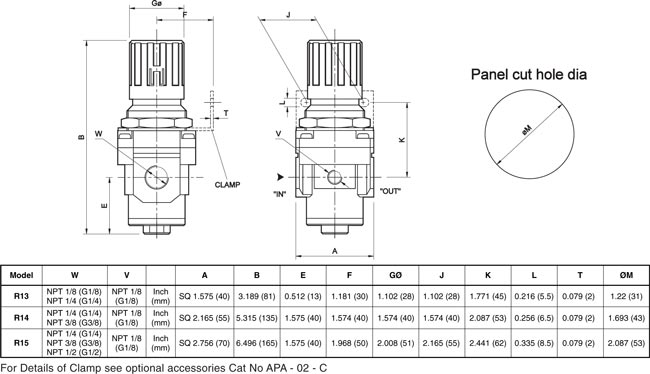

- Suitable for panel and modular mountings
- Non raising Press to Lock adjusting knob for locking at any set pressure
- Diaphragm operated, relieving type
- Pressure compensated by balanced poppet
- Flow compensated in models R14 and R15 (with venturi) for faster response

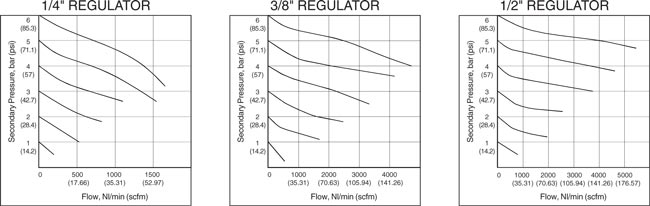

- Good flow and regulating characteristics
- Built in non return valve allows free air flow in reverse direction. When the inlet air is reduced by and below the setup pressure
Pull the knob and adjust by turning the knob clockwise to increase the pressure. Push the knob back to its locked position. ( Turning the knob counter clockwise will reduce the pressure )
