FRCLM with piping adaptor NPT
- FRCLM1 series – Sizes NPT 1/4, 3/8, 1/2, 3/4, 1
- Modular type for easy and fast maintenance
- Suitable for wall mounting
- Filter
- Bronze filtering element
- Separator and shield for efficient moisture separation
- Press type manual drain for easy operation
- Regulator
- Diaphragm operated, relieving type
- Pressure compensated by Balanced poppet

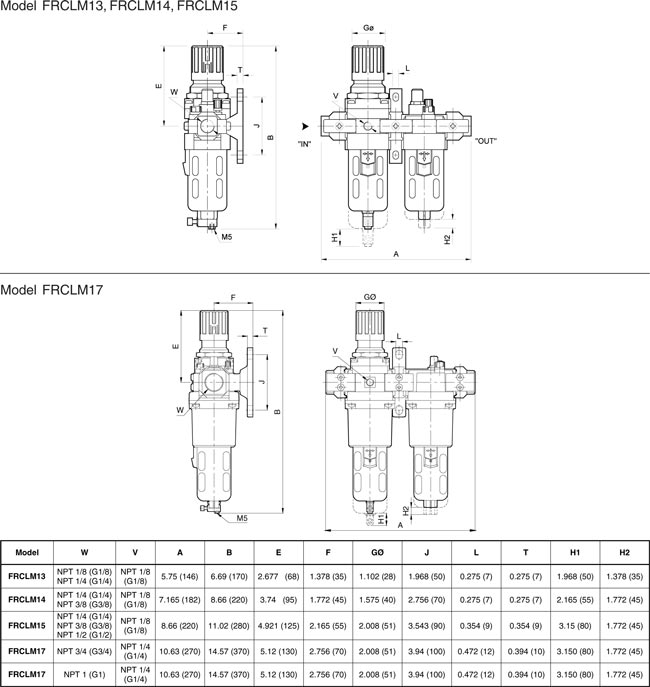

- Flow compensated in models FRCLM14, FRCLM15 and FRCLM17 for faster response
- Non raising Press to Lock adjusting knob for locking at any set pressure
- Lubricator
- Fog/Mist type Lubricator
- Fine adjustment of lubrication
- Lubrication proportional to flow
- Steel bowlguard, bayonet type on FRCLM14, FRCLM15 and FRCLM17 models and threaded type on FRLM13 model

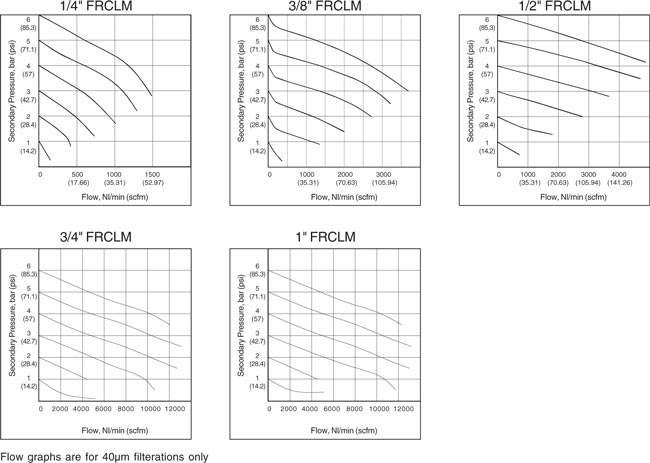

- Good flow and regulating characteristics
Pull the knob and adjust by turning the knob clockwise to increase the pressure. Push the knob back to its locked position. ( Turning the knob counter clockwise will reduce the pressure )
