Auto Drain Valve NPT
- NA1 series – Sizes NPT 1/4, 3/8, 1/2
- Individual unit (Externally mountable)
- Low operating pressure
- Compact size
- Elegant design and finish
- Long life

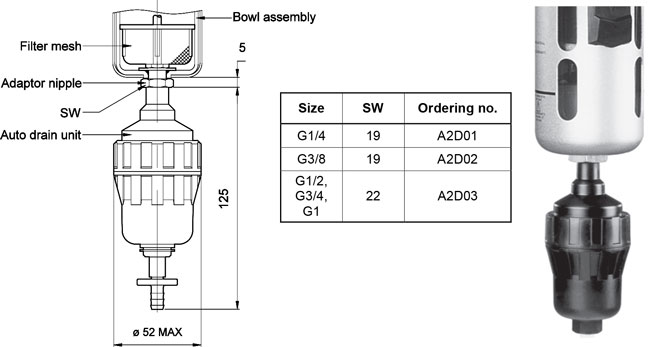

These Auto drain units are externally mountable on G1/4, 3/8 and 1/2, 3/4, 1 size Filters and FRC units. As the condensed water collects in the drain unit, the float moves up and drains the water. The condensate water can also be drained manually. A plastic tube can be fitted at the bottom of the auto drain unit to take the drained water away from the unit.
