Quick Exhaust Valve
- GQ series (Sizes : M5, G1/8, G1/4, G3/8, G1/2)
- Increase the speed of the cylinder
- With / without silencer
- Connection – M5, G1/8, G1/4, G3/8, G1/2
- Type GQ01 series is with silencer to reduce the exhaust noise
These Quick exhaust valves when fitted to cylinder ports will result in increased speed of the cylinder. The exhaust air is directly connected to atmosphere through a bigger hole, instead of exhaust air going through the directional valve.

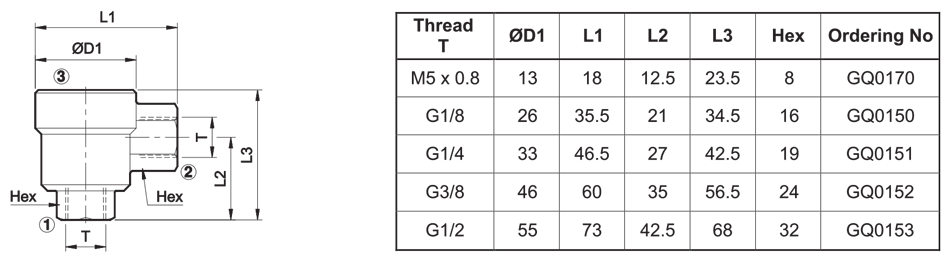

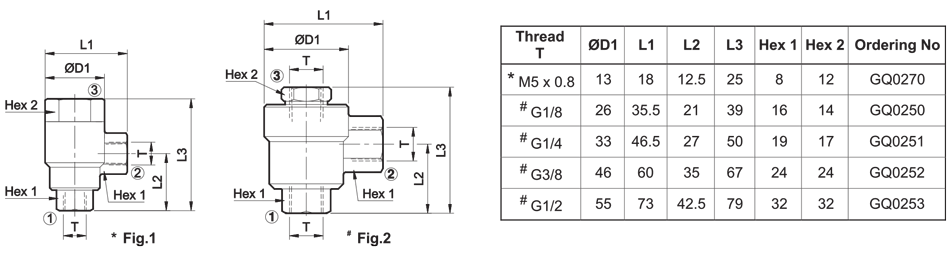

While ordering Quick exhaust valves, mention the ordering number given in the corresponding tables.
