Inline Slide Valve

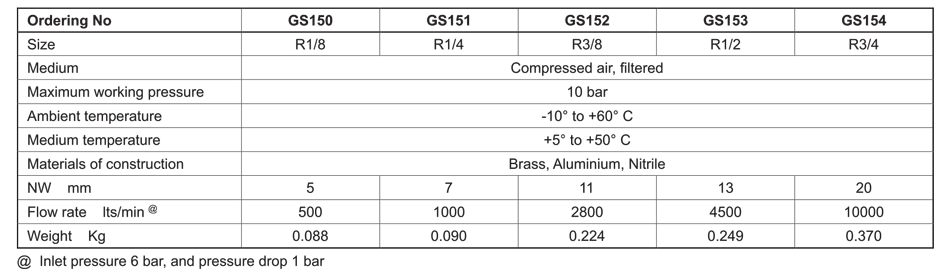

Application

• These valves can be used at the inlet of pneumatic tools like screwdriver, grinder etc., pneumatic systems and near machineries using pneumatic systems, for quick and convenient connecting – disconnecting of compressed air.

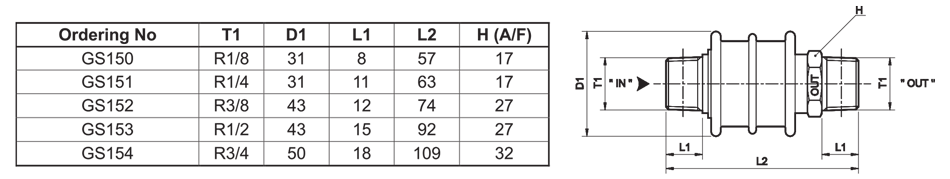

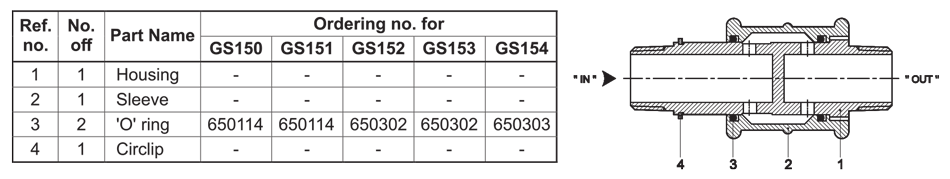

Operation

Moving the sleeve towards ” OUT “, connects the air line to the system and moving the sleeve in the opposite direction, will close the inlet port and exhaust the down stream air.

• Note the direction of flow before installation and connect piping accordingly.
• Flush pipings for dirt, dust, rust and other foreign particles.
• Install in clean atmosphere.
• Use teflon tape on taper threads. Ensure teflon tape does not enter the unit during tightening.
