Flow Control Valve
- GR2 series (Sizes : M5, 1/8, 1/4, 3/8, 1/2)
- Directly mountable on cylinder/valve ports
- Can be rotated by 360 degree
- Fine regulation of air flow
- Nickel plated body
- Male threads(R) teflon coated
- Elegant design and finish

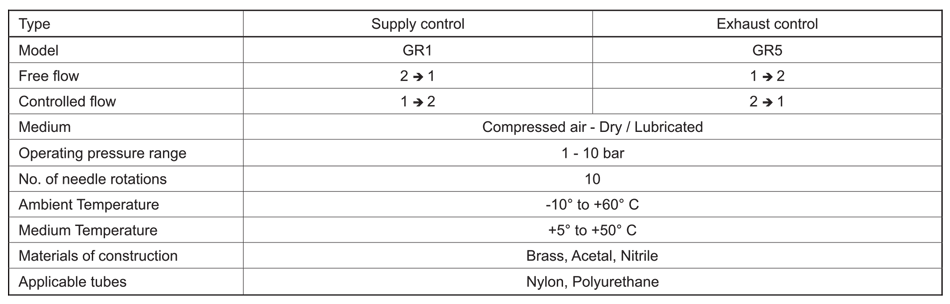

Function
- These valves allow controlled flow of air in one direction and free flow in the other direction.
- These are available in two versions – a) Supply control version, and b) Exhaust control version.
Application
- These valves are used to control the speed of piston in a pneumatic cylinder.

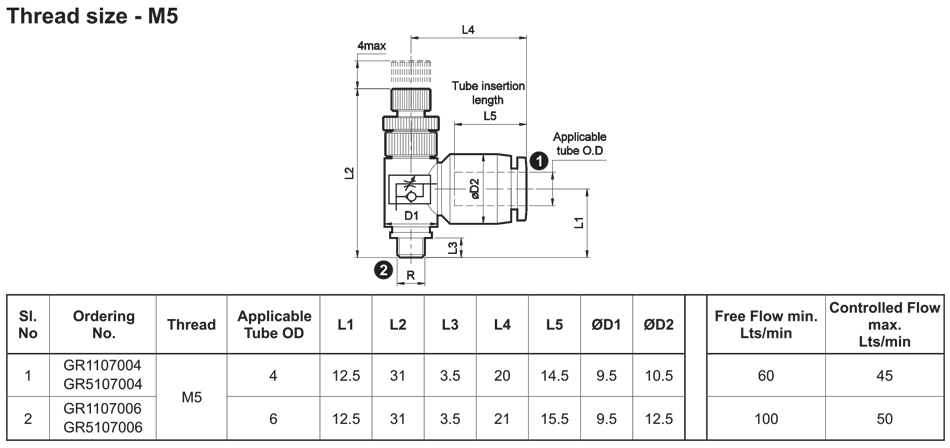

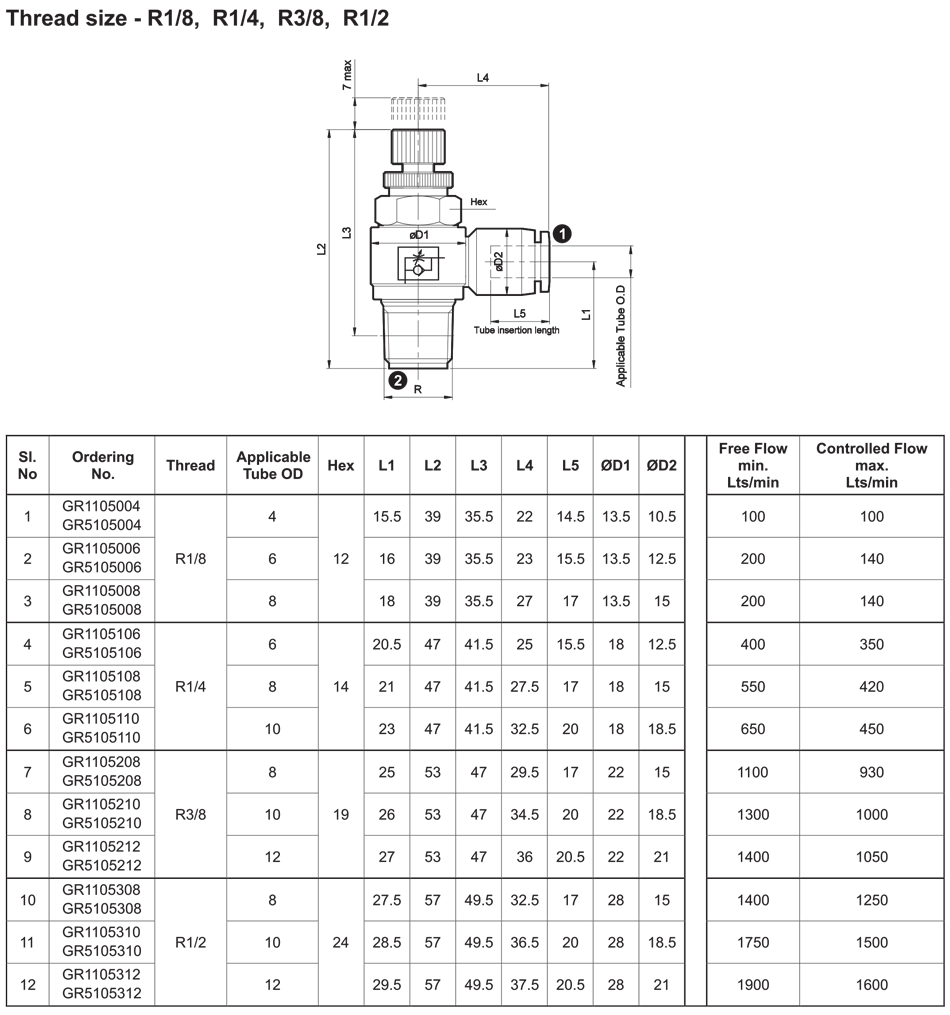

While ordering Flow control valve, mention the ordering number given in the corresponding tables.
