Standard Cylinder A23, A24
- AIR CYLINDERS Double Acting – Ø32 – 100 mm
- As per ISO 15552 / VDMA 24562 standards
- Adjustable cushioning at both ends with elastomer pads

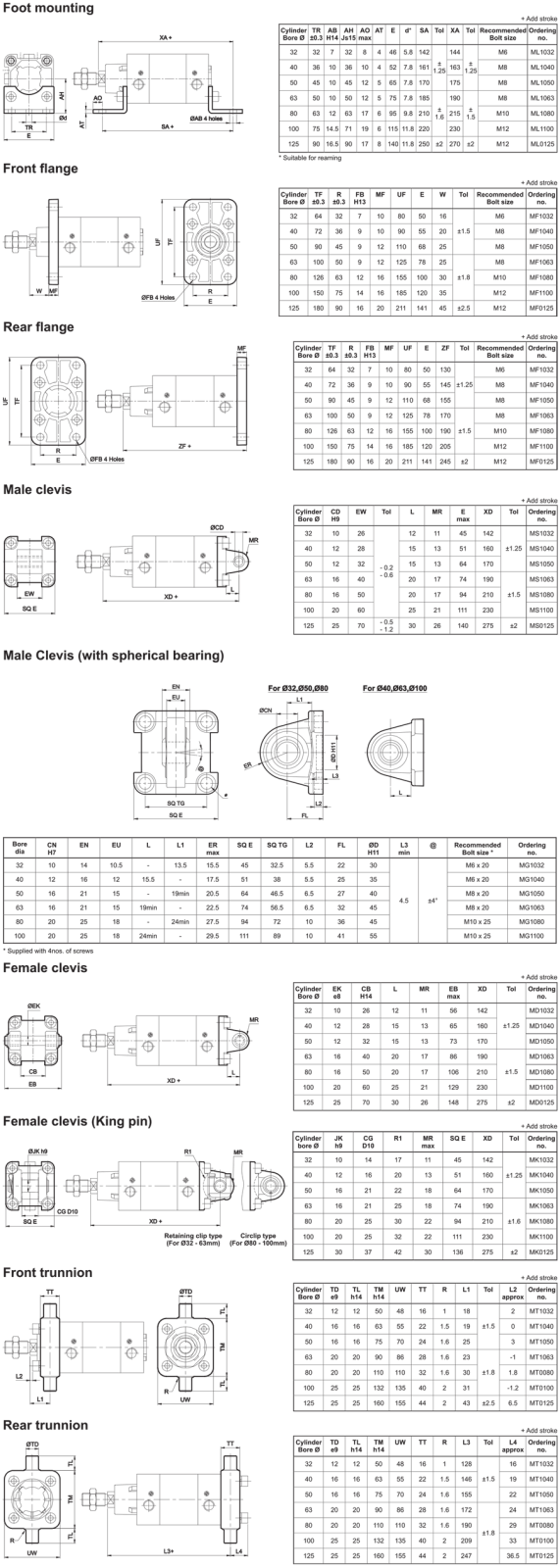

- Wide varieties of mountings as per ISO 15552 / VDMA 24562 standards
- Magnetic and Non magnetic version
- Aluminium profile (square) cylinder barrel
- Magnetic sensor common for all sizes (Refer Magnetic sensor catalogue)
- Optional – High temperature (Viton seals) 150°C max.**
- Optional – Non corrosive Stainless steel piston rod and piston rod lock nut (SS 304)**
