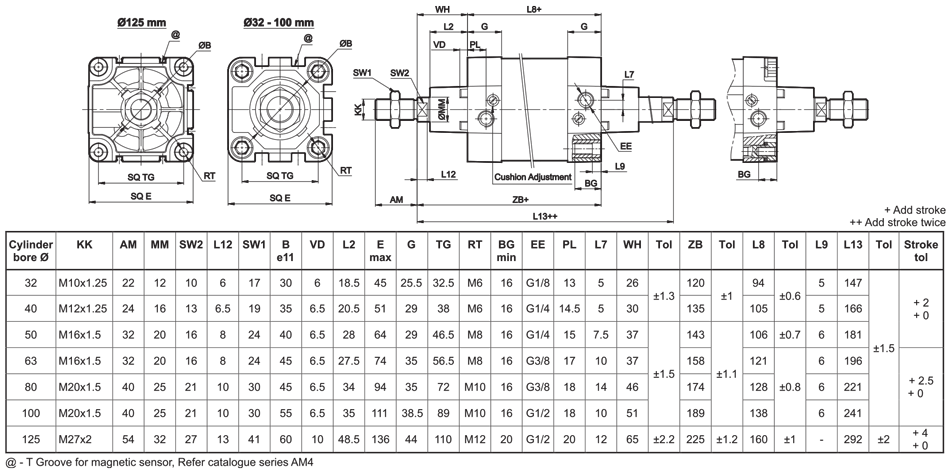

Double End Cylinder A20, A21
- Double End Double Acting Cylinders (Square type) Ø32 – 125 mm
- Adjustable cushioning at both ends with elastomer pads

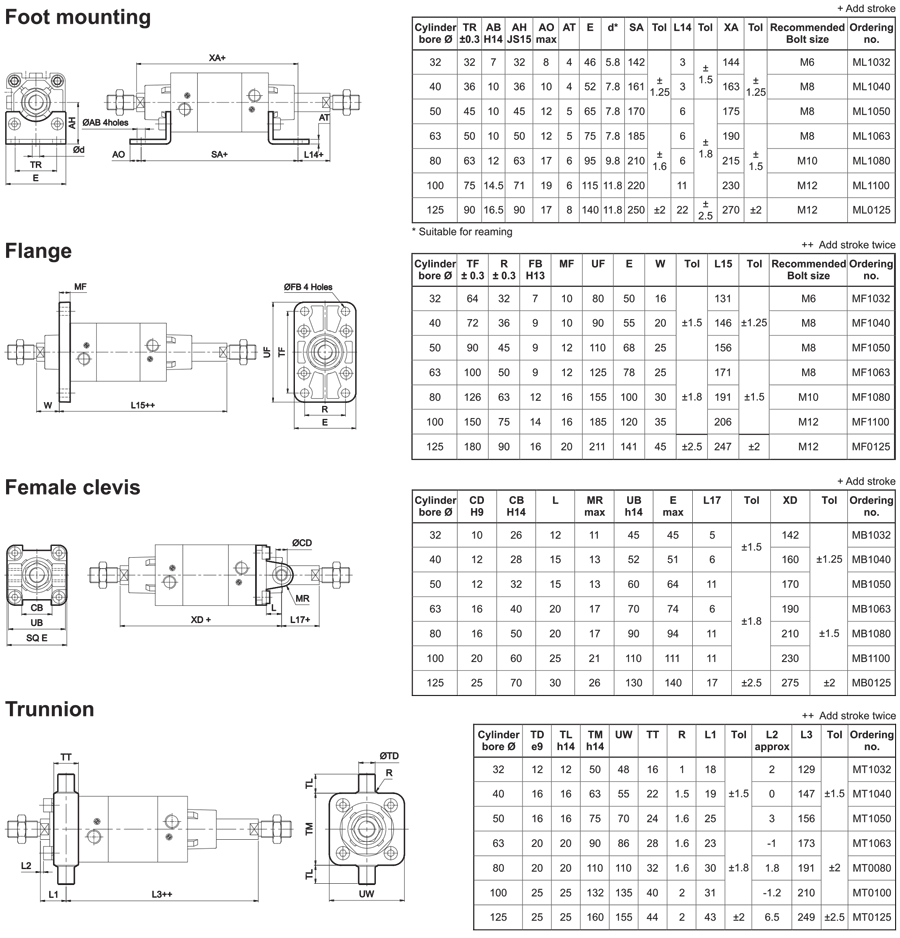

- Wide varieties of mountings as per ISO 15552 / VDMA 24562 standards
- Magnetic and Non magnetic version
- Aluminium profile (square) cylinder barrel

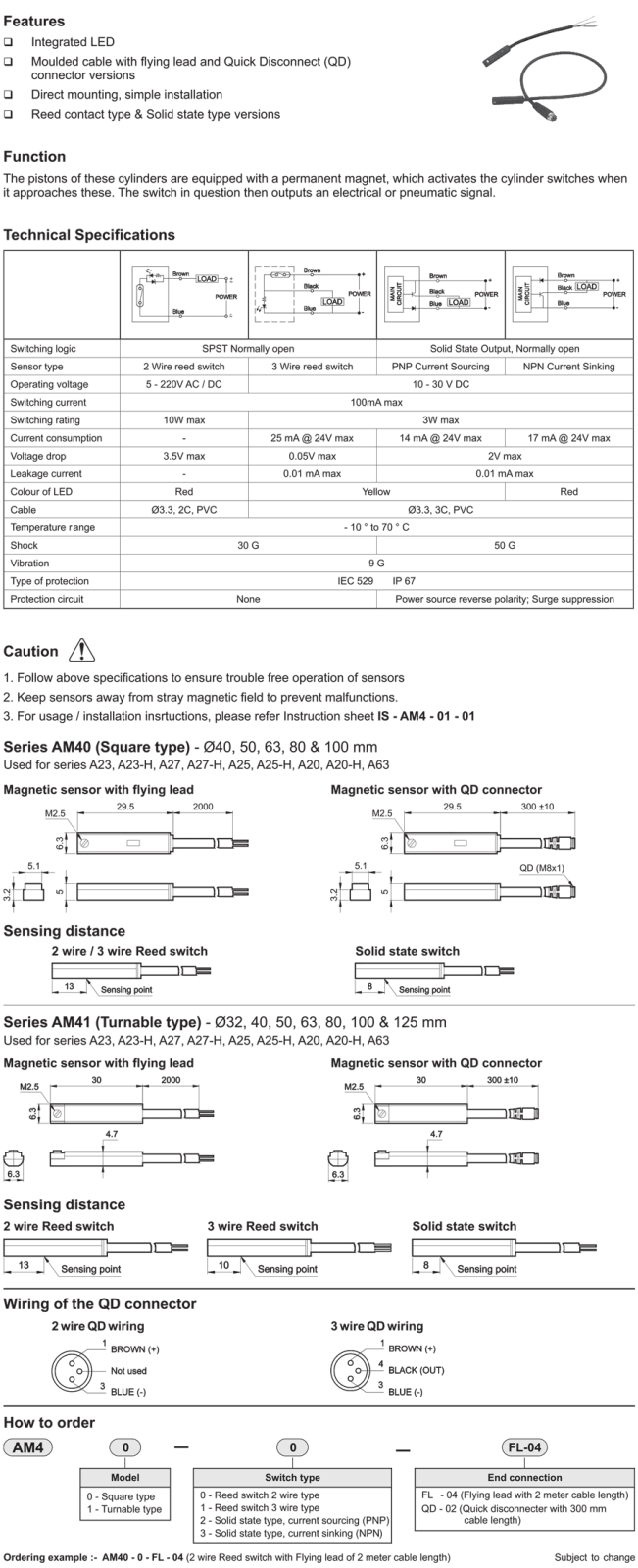

- Magnetic sensor common for all sizes ( Refer Magnetic sensor catalogue )
- Optional – High temperature (Viton seals) 150°C max.**
- Optional – Non corrosive Stainless steel piston rod and piston rod lock nut (SS 304)**
