Round Cylinders - Series A75, A76

Round Cylinders – Series A75, A76

  • A75, A76 Series – Ø32, 40, 50 and 63 mm
  • Available in magnetic and Non magnetic version
  • Adjustable cushioning at both ends
  • Threaded end cover – hence direct mounting on the machine is possible
  • Miniature type – compact in size
  • Piston rod made of Non corrosive stainless steel piston rod (SS303)
  • Suitable for Packing and Packaging machines
  • Printing machines
  • Machine tools / SPMs
  • Food industries
  • Medical equipments
  • Textile machines
  • Leak testing equipment
  • Air gauging equipment and many more …..

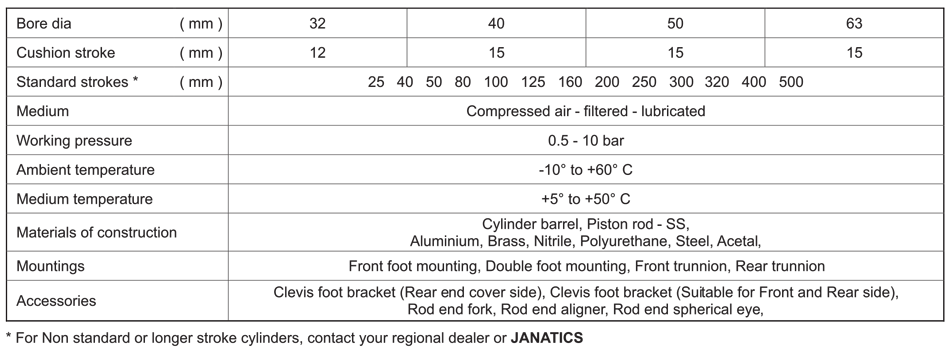

Technical Specifications Table

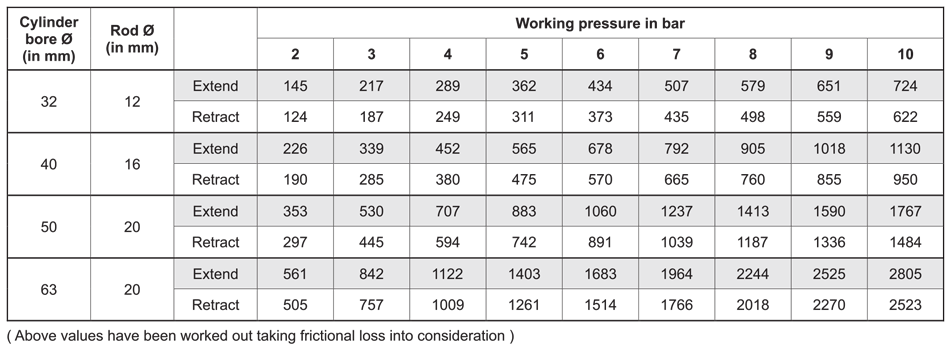

Output Force Table

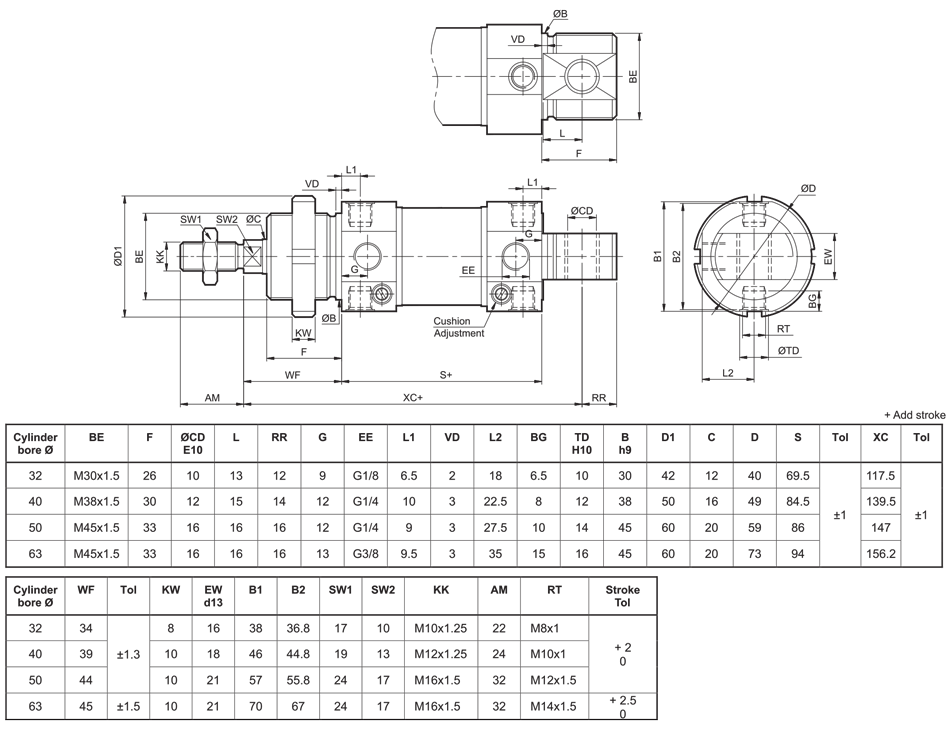

Basic Cylinder Diagram

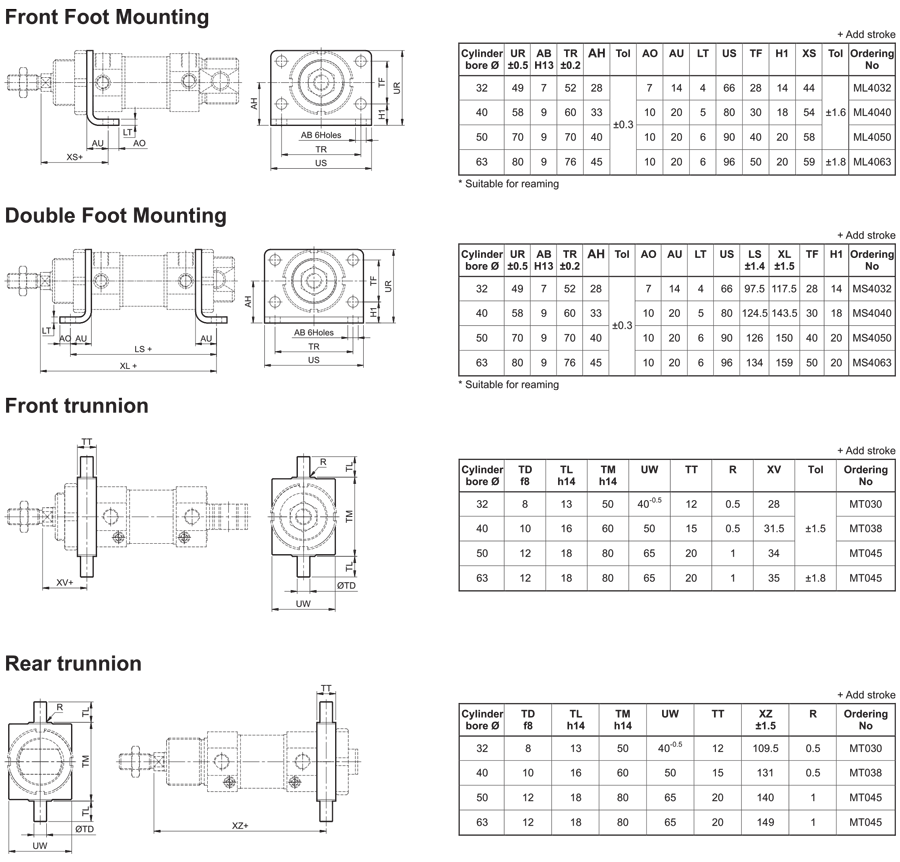

Mountings

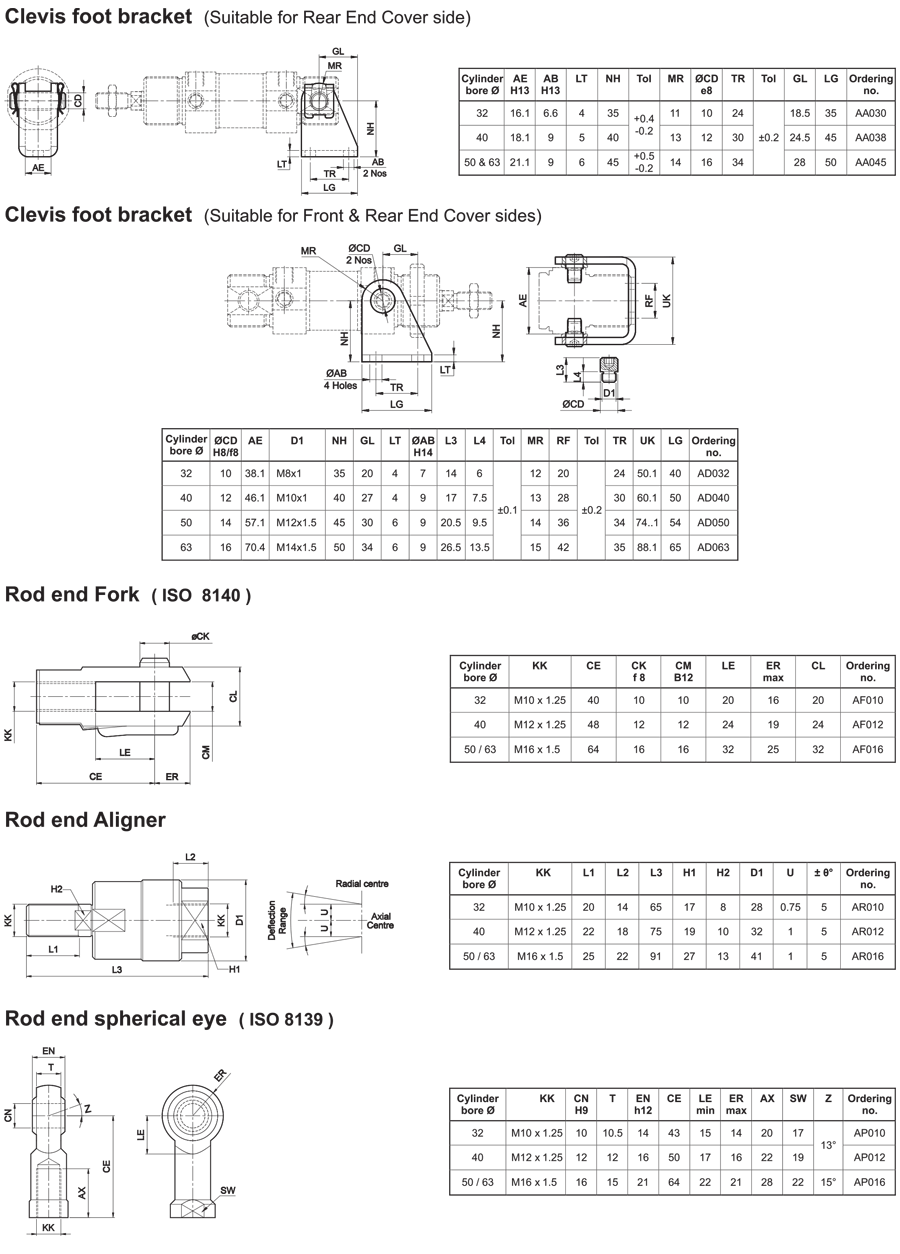

Accessories

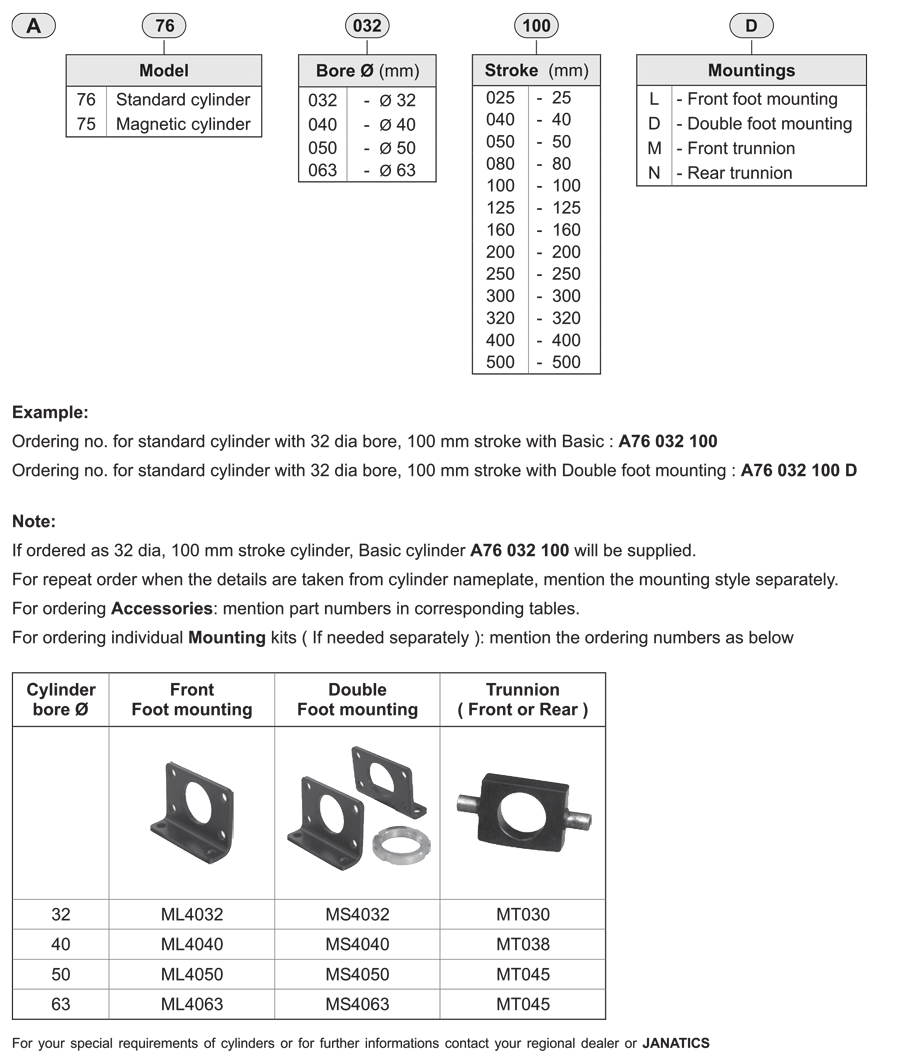

How to order guide
