Miniature Cylinder A53, A54

Miniature Cylinder A53, A54

  • Double End – As per ISO 6432 / CETOP RP52P standards (Ø12 – 25mm)
  • Elastomer cushioning at both ends
  • Wide varieties of mountings
  • Low friction
  • Long life

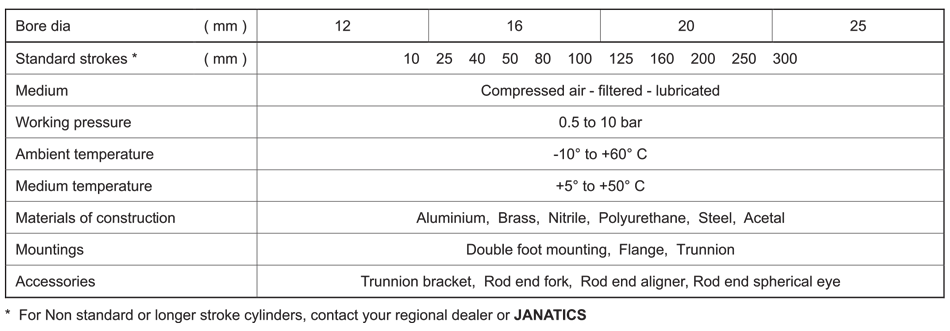

Technical Specifications Table

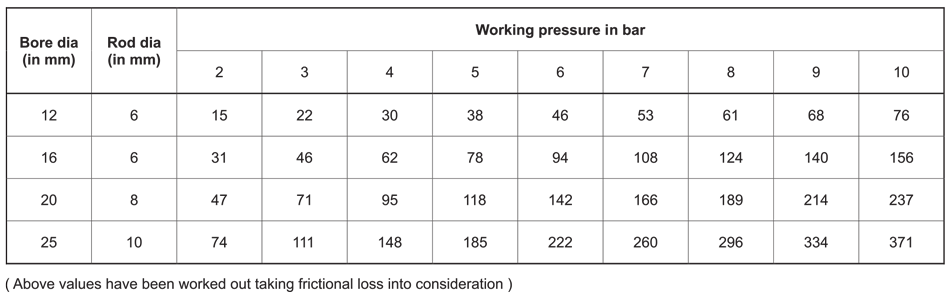

Output Force Table

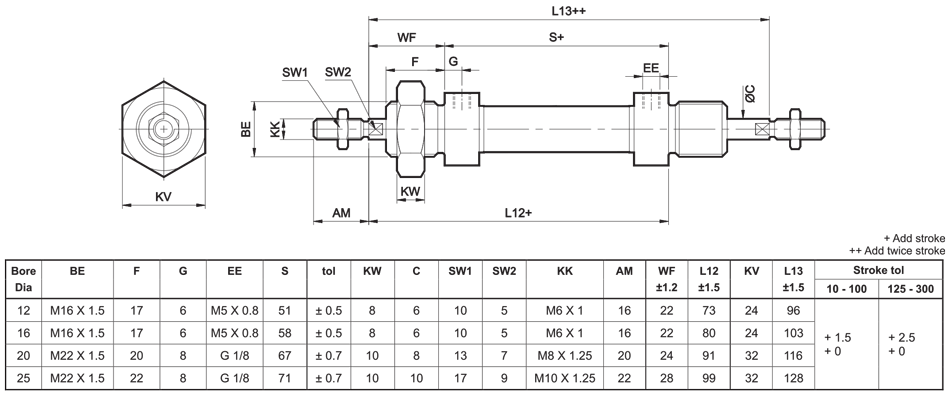

Basic Cylinder Diagram

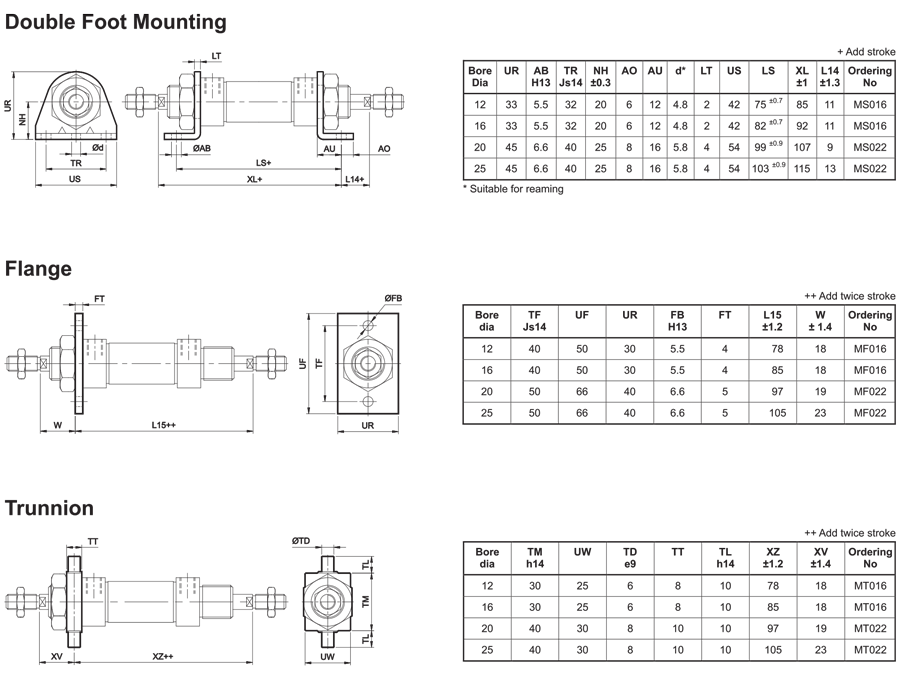

Mountings

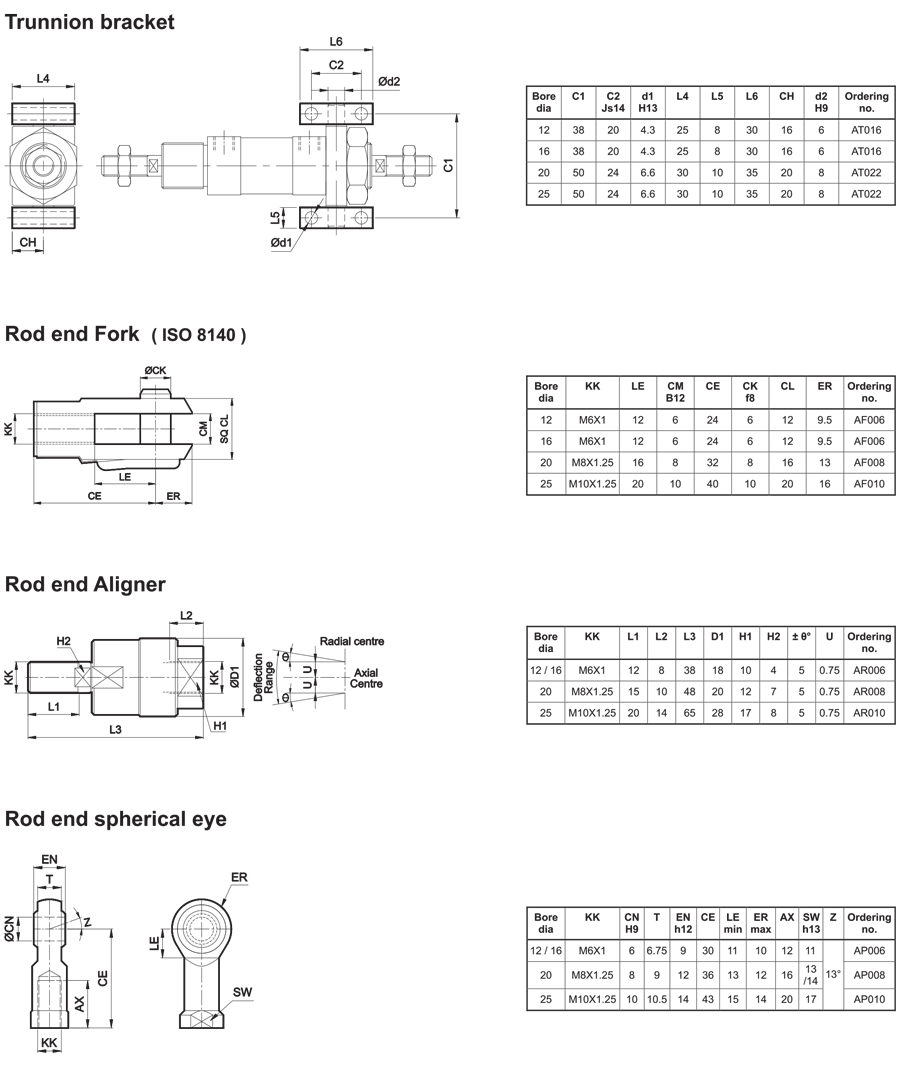

Accessories

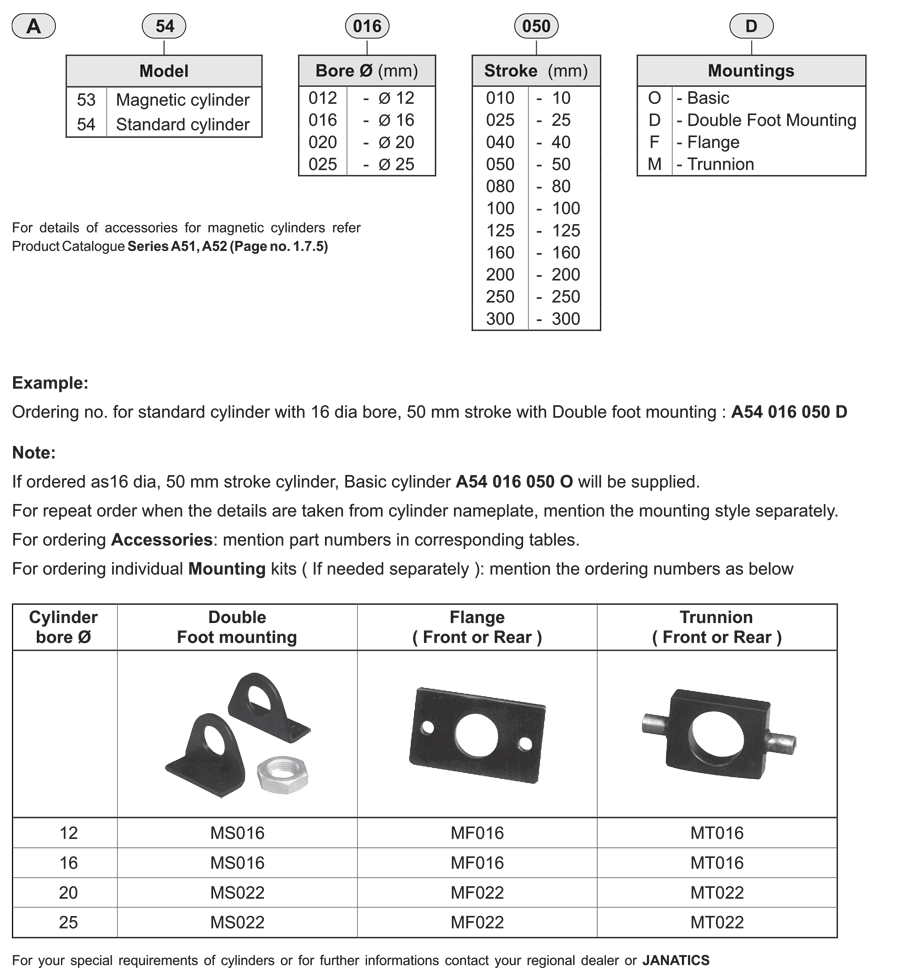

How to order guide
