Miniature Cylinder A51, A52

Miniature Cylinder A51, A52

  • AIR CYLINDERS Double Acting ( Ø12 – 25 ) mm
  • As per ISO 6432 / CETOP RP52P standards
  • Elastomer cushioning at both ends
  • Wide varieties of mountings
  • Accessories
  • Magnetic and Non magnetic versions
  • Low friction
  • Long life

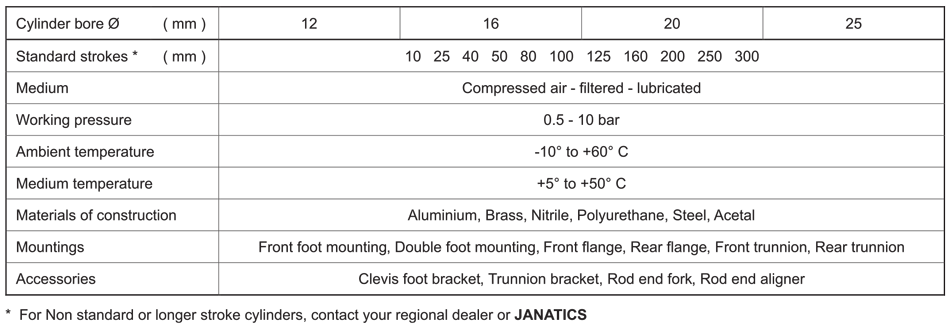

Technical Specifications Table

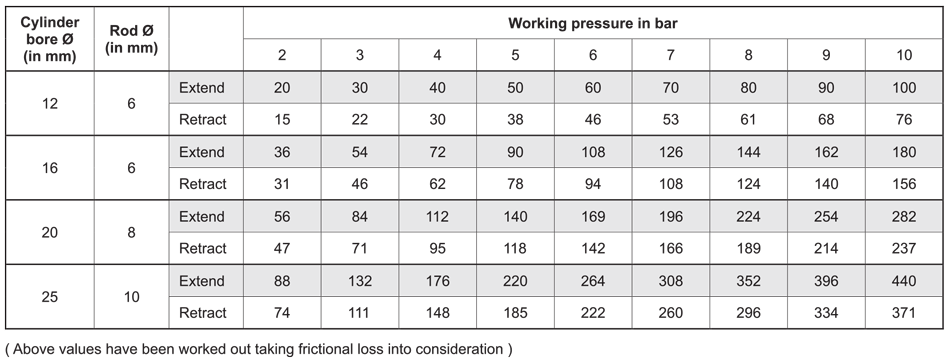

Output Force Table

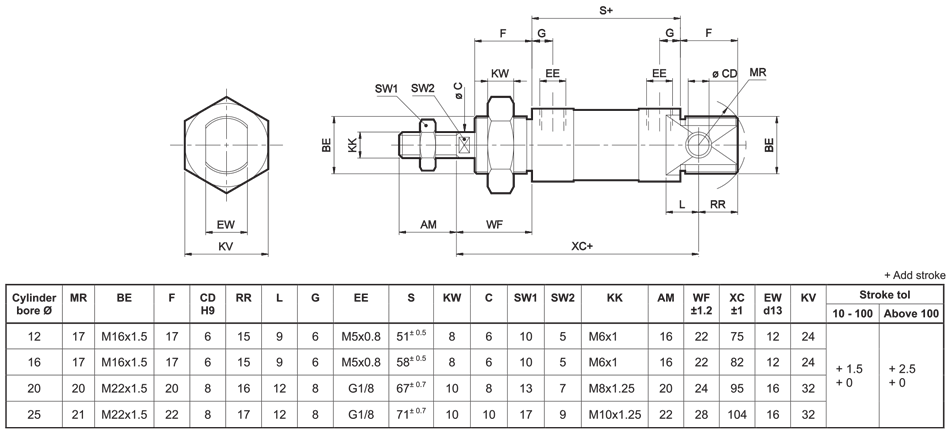

Basic Cylinder Diagram

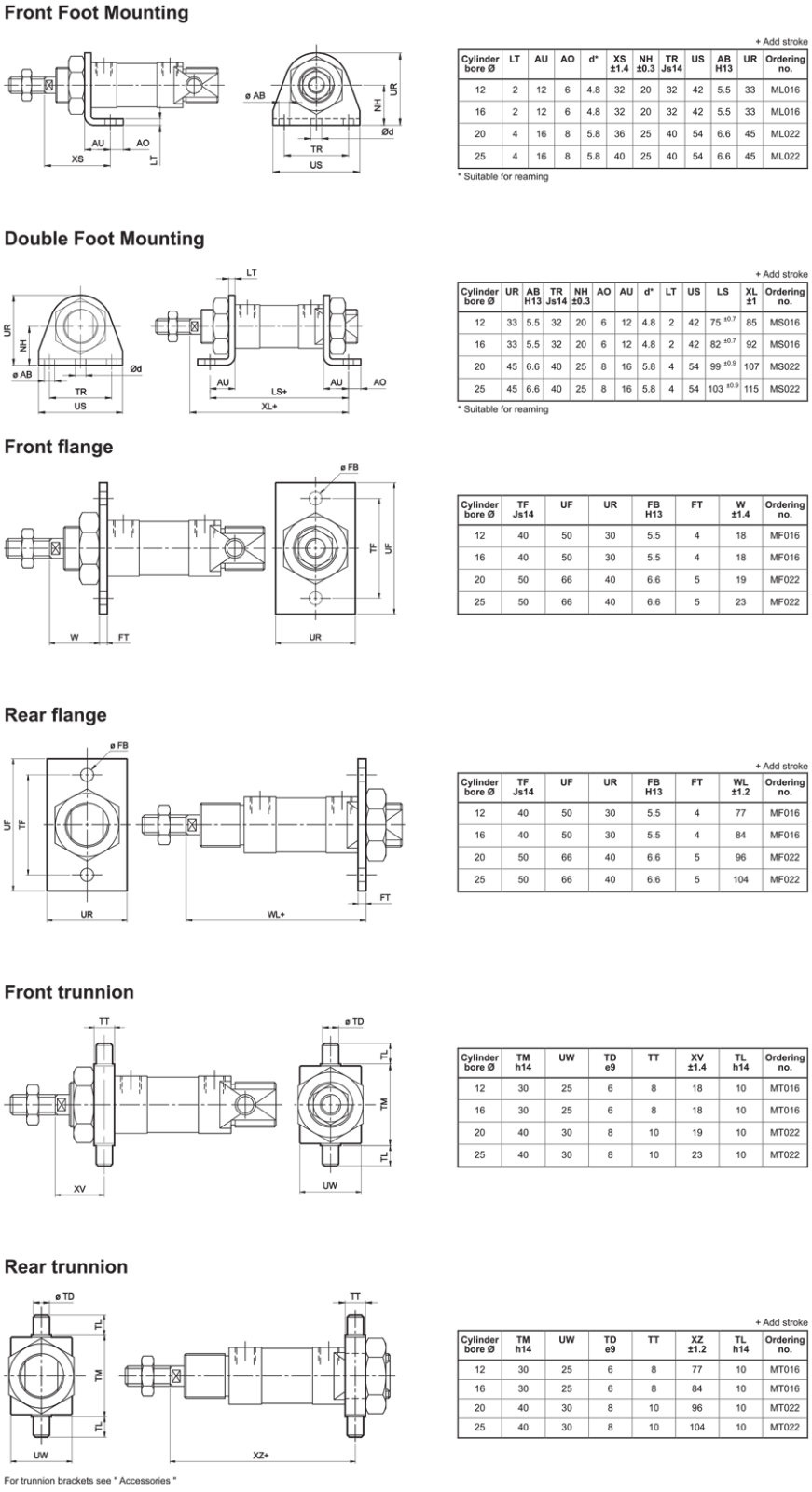

Mountings

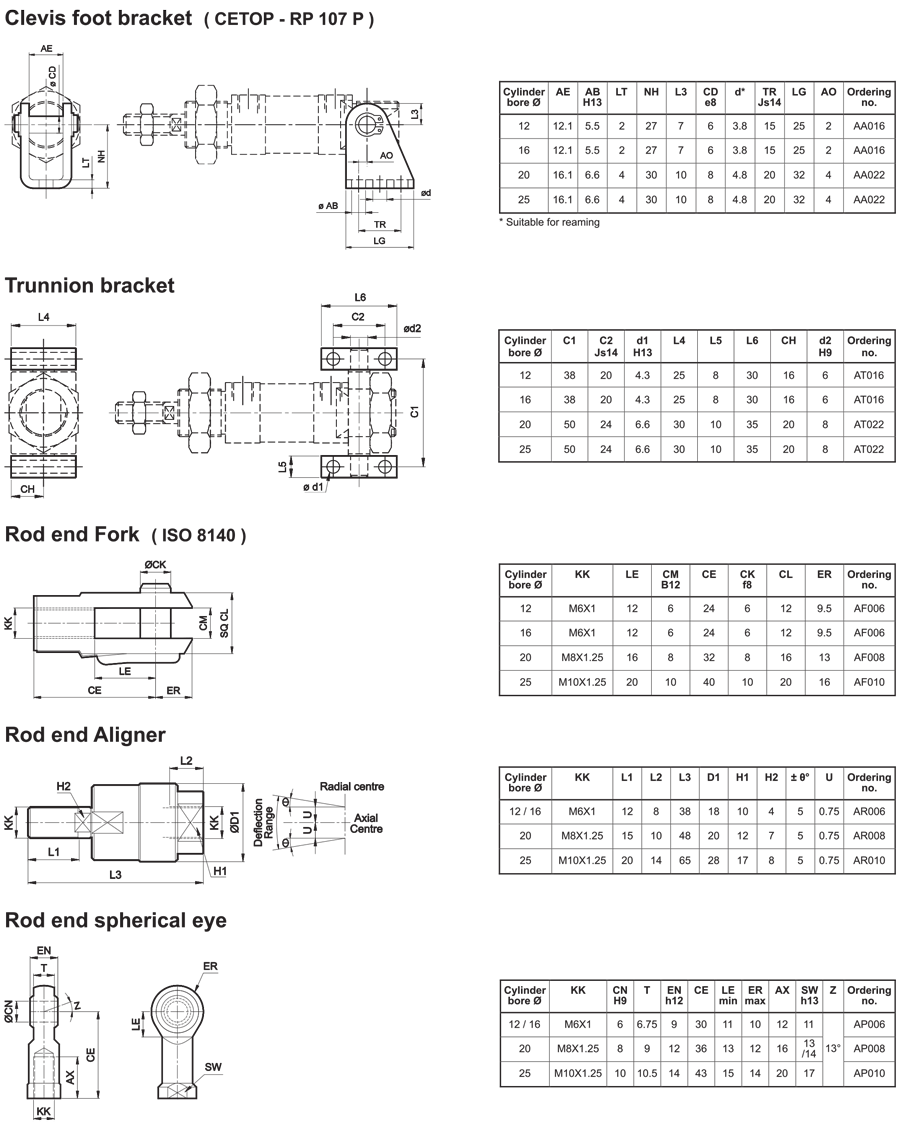

Accessories

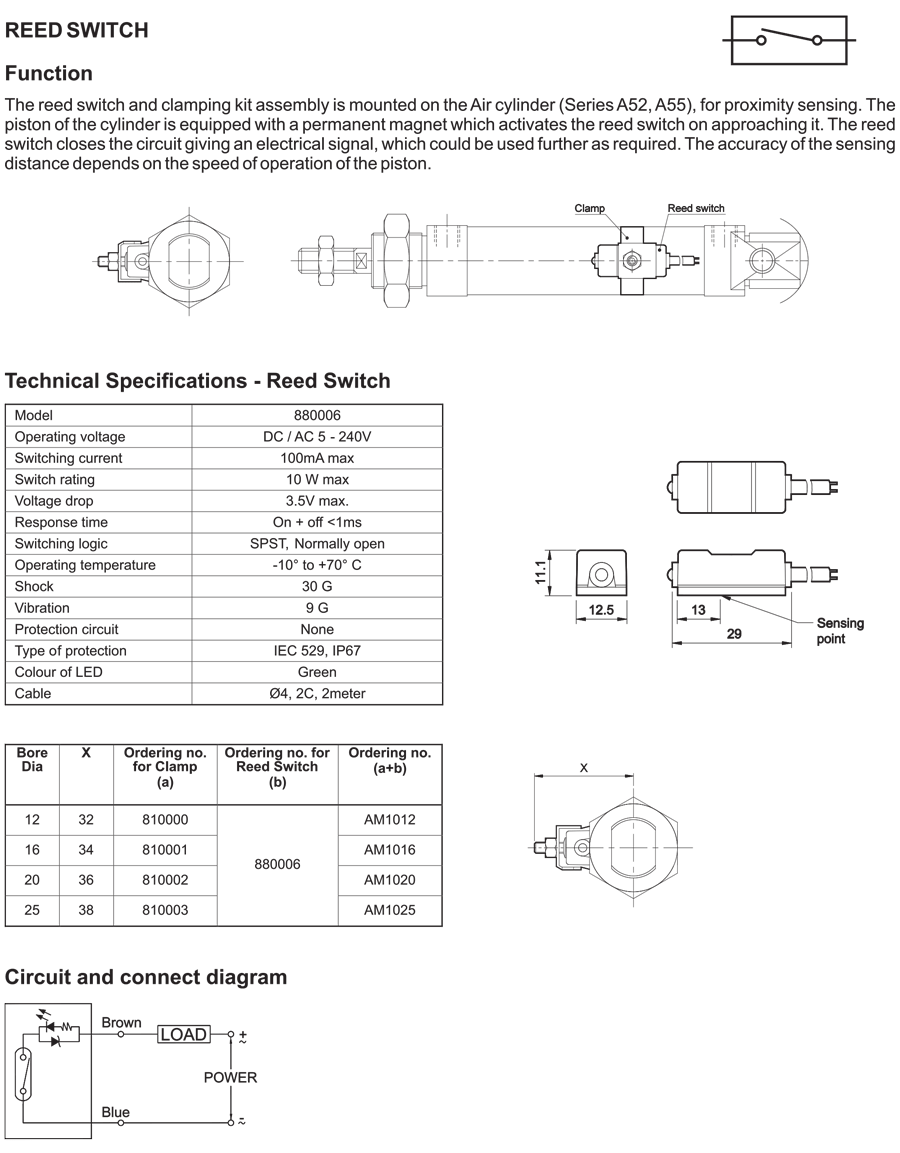

Reed switch

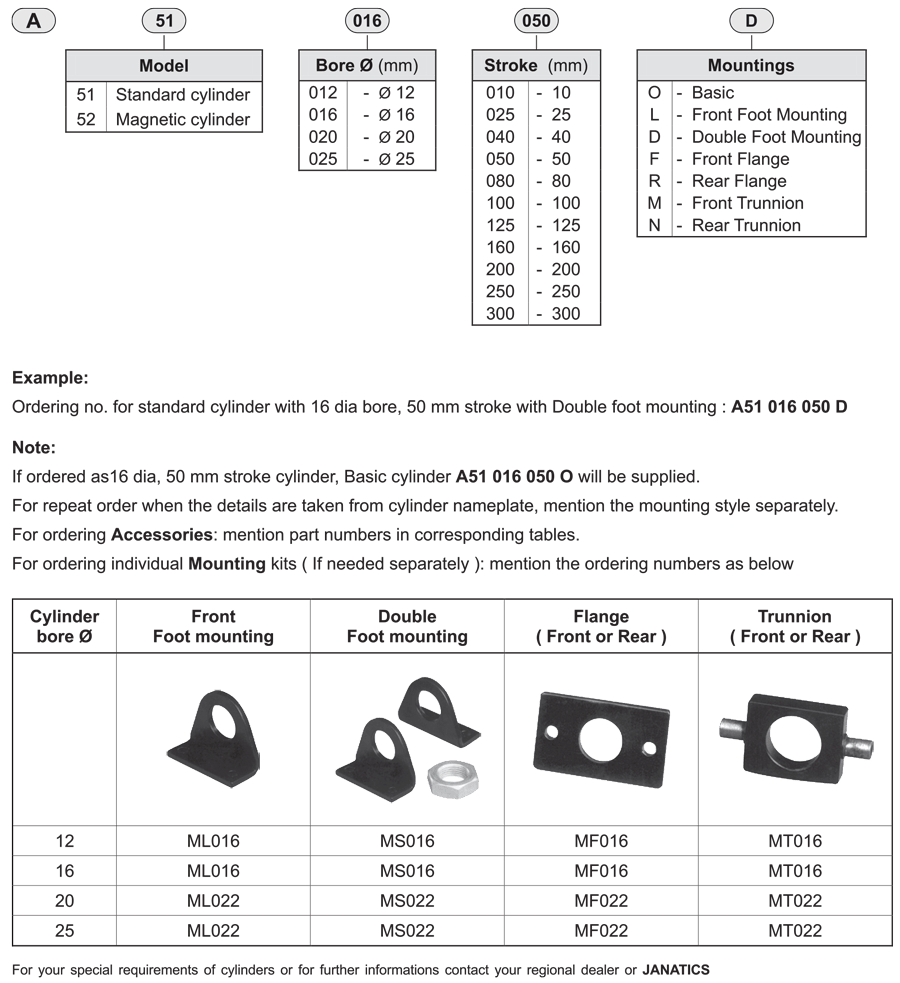

How to order guide
