Low friction cylinder - Series A50

Low friction cylinder – Series A50

  • Double Acting – As per ISO 6432 / CETOP RP52P standards (Ø25mm)
  • The special seal reduce the wear
  • Lower Response Pressure
  • Low friction
  • Long life
  • Wide varieties of mountings

Some of the applications of precision regulator,

  • Manufacturers of air gauging equipment
  • Medical equipments
  • Leak testing equipment
  • Polishing machinery
  • Web tensioning
  • Measuring machines
  • Ink or paint, Robotics spraying systems
  • Tank blanketing and many

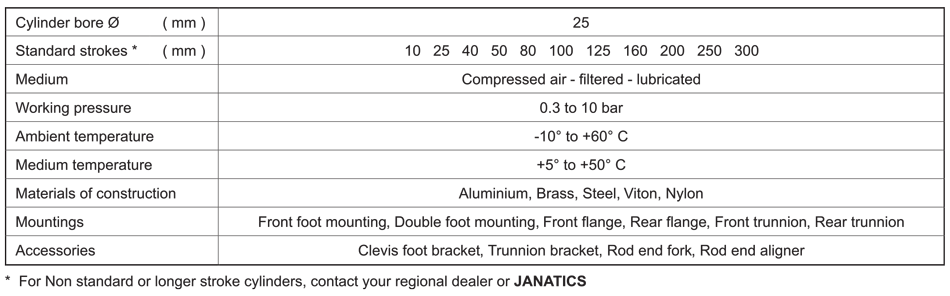

Technical Specifications Table

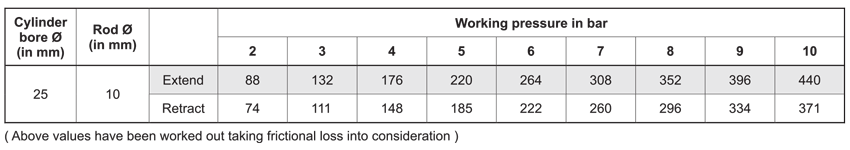

Output Force Table

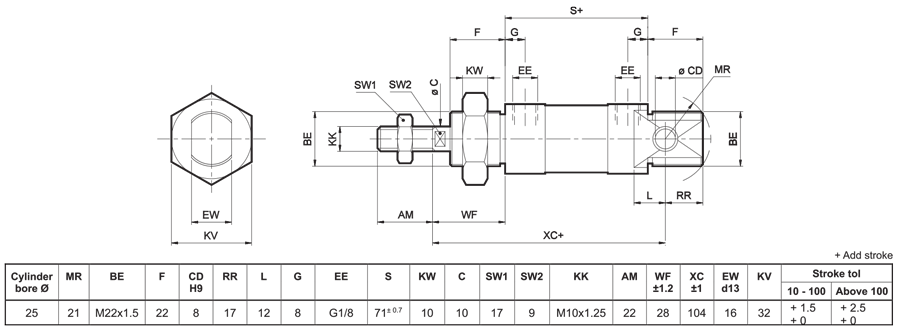

Basic Cylinder Diagram

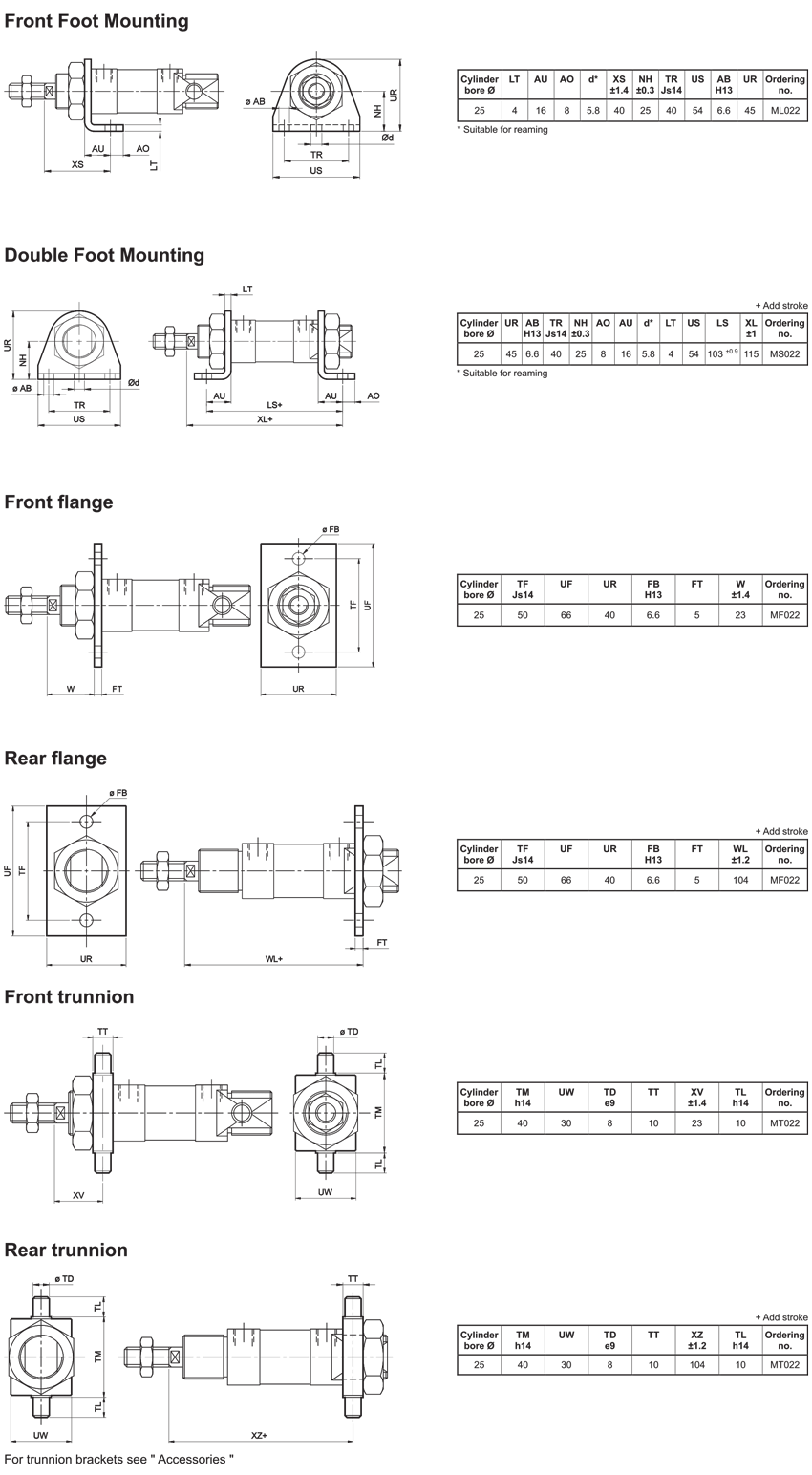

Mountings

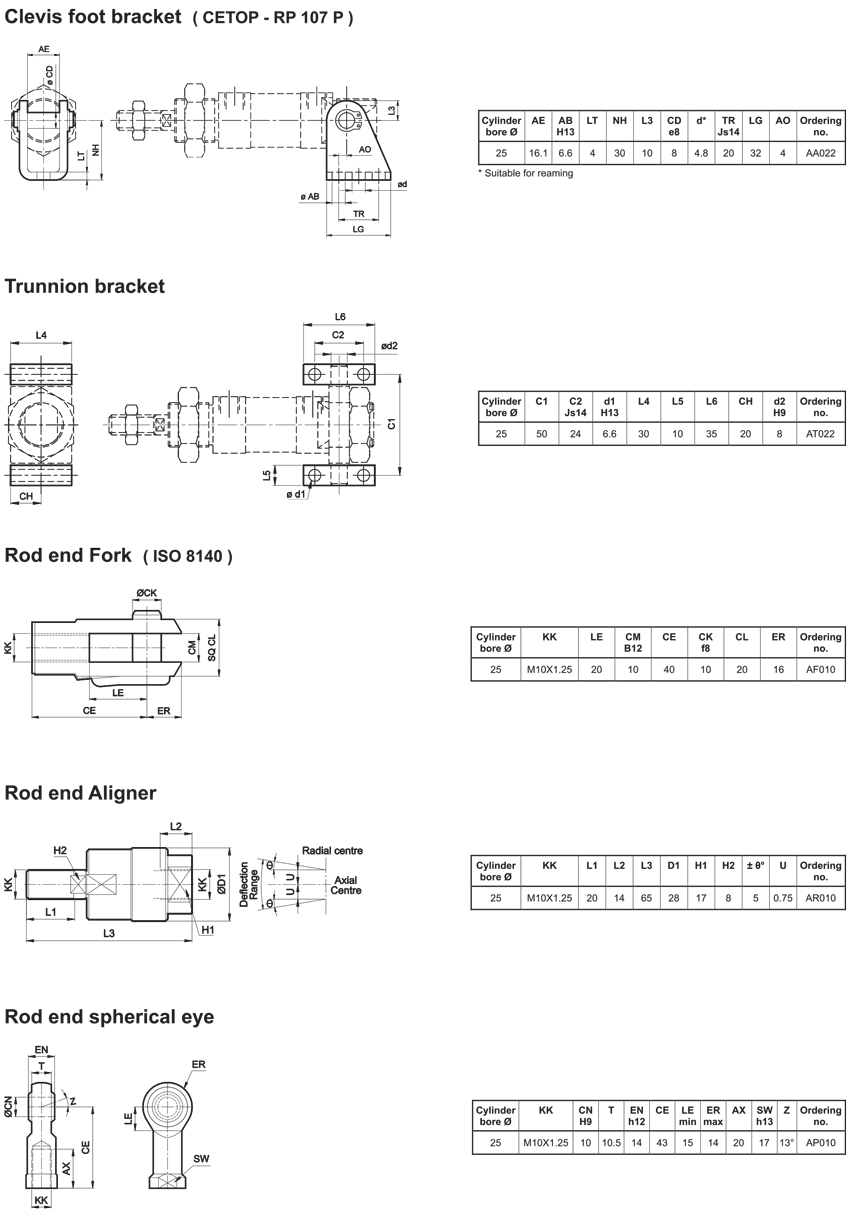

Accessories

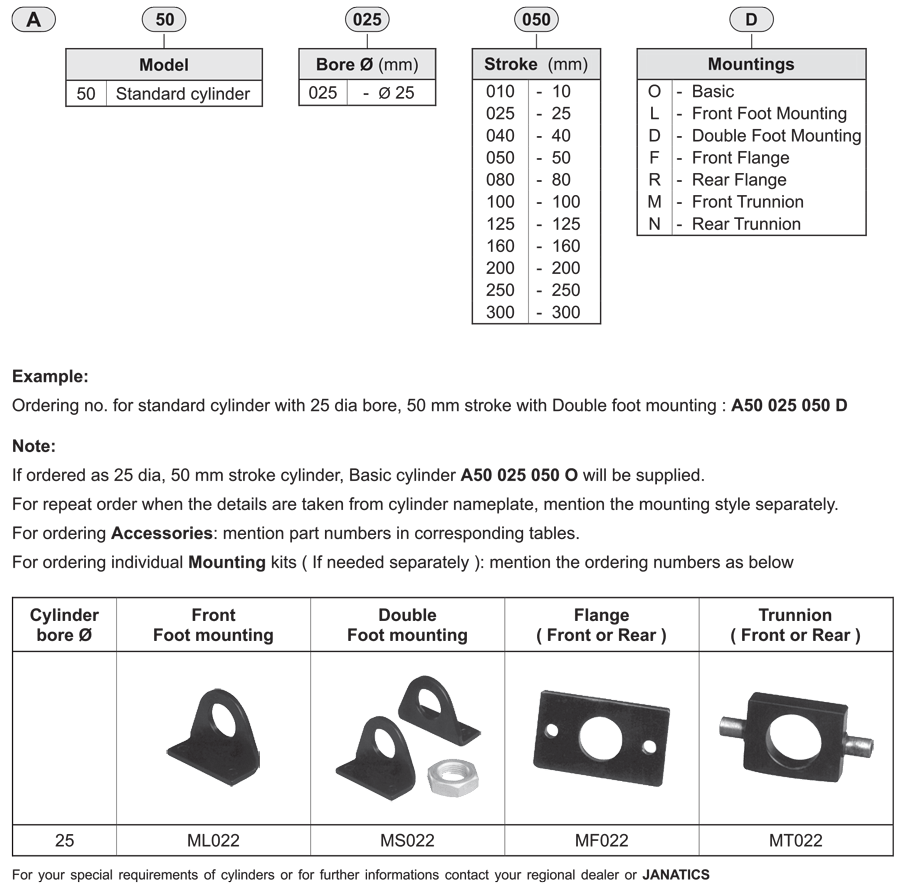

How to order guide
