Air Cylinders Double Acting - Dia 8 & 10 mm

Air Cylinders Double Acting – Dia 8 & 10 mm

  • Series A51, A52 – Air Cylinder Double Acting (ISO 6432 / CETOP RP52P standards)
  • Elastomer cushioning at both ends
  • Wide varieties of mountings
  • Low friction
  • Long life

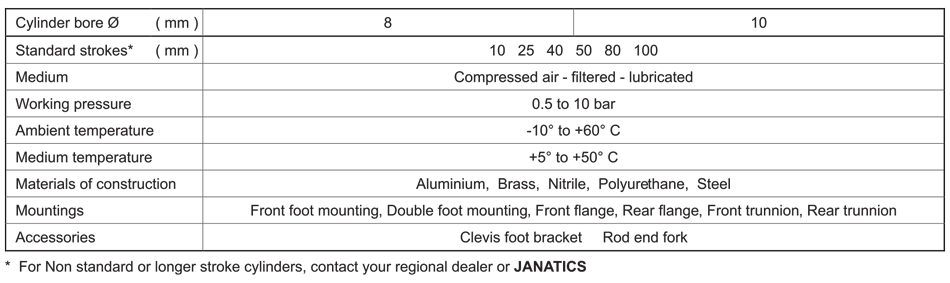

Technical Specifications Table

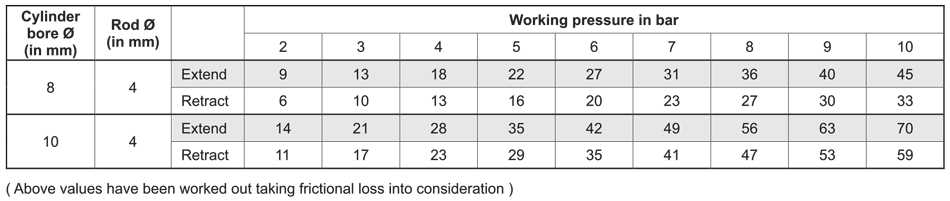

Output Force Table

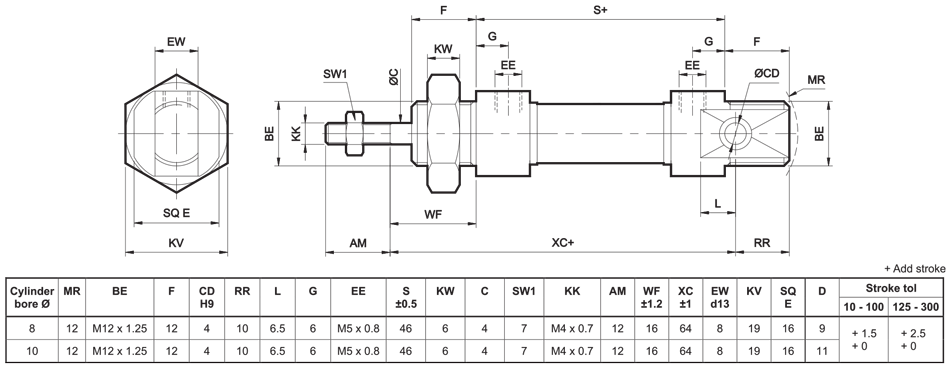

Basic Cylinder Diagram

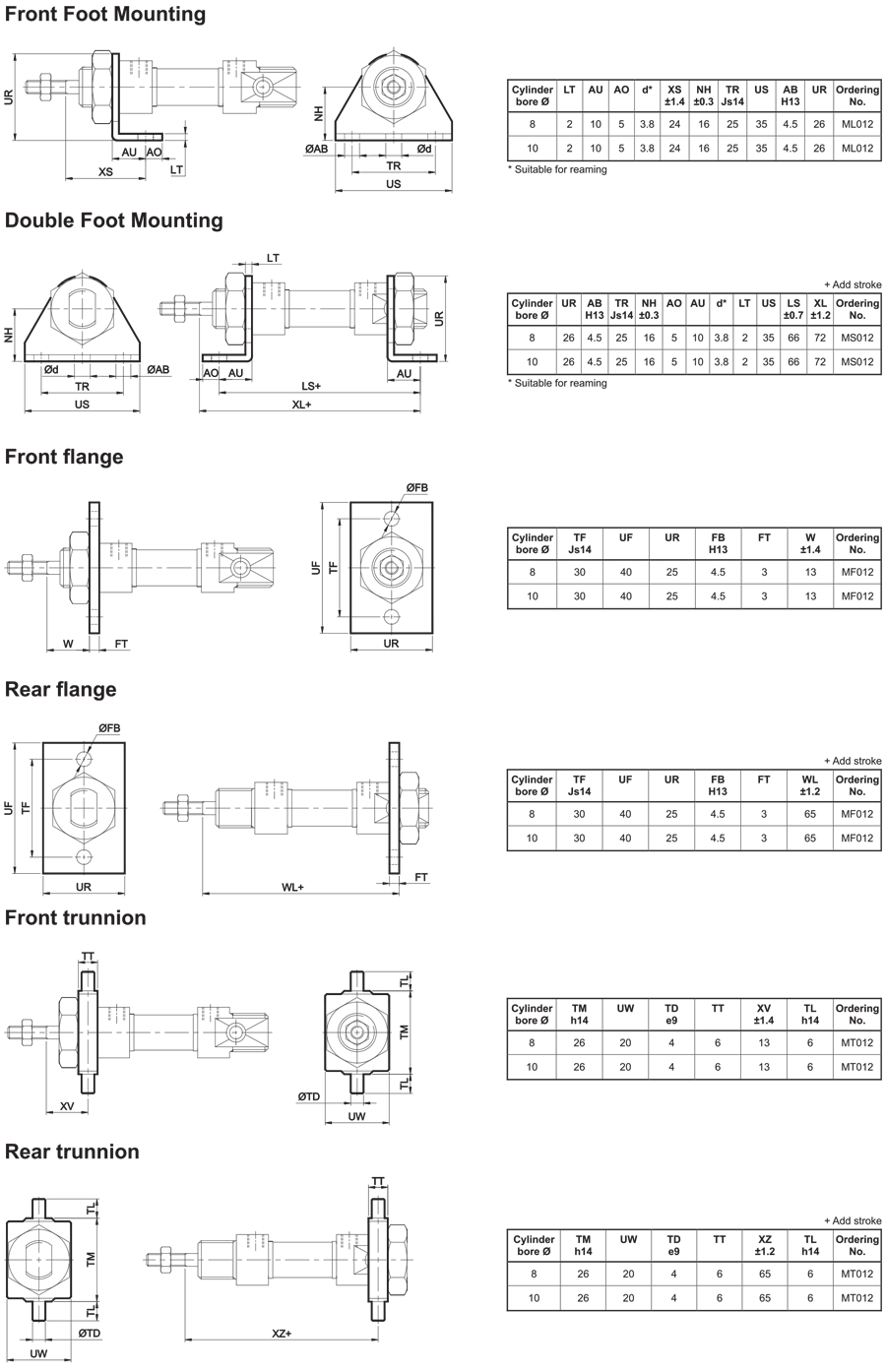

Mountings

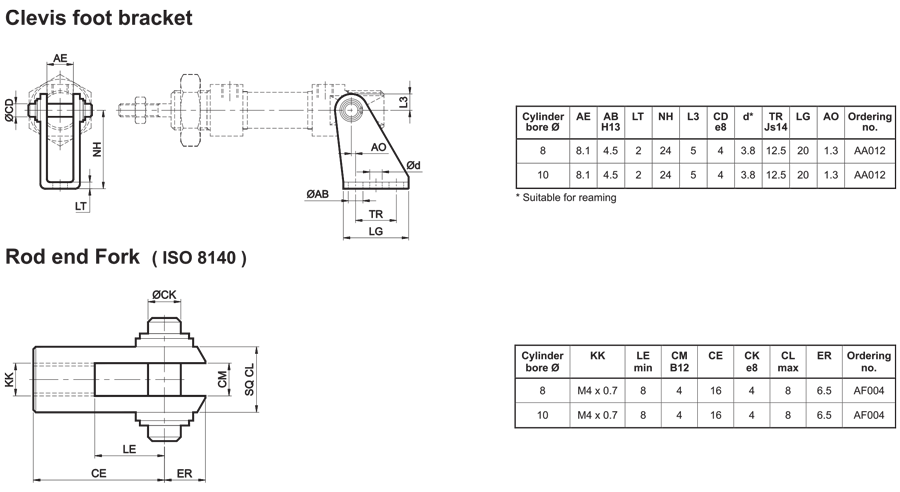

Accessories

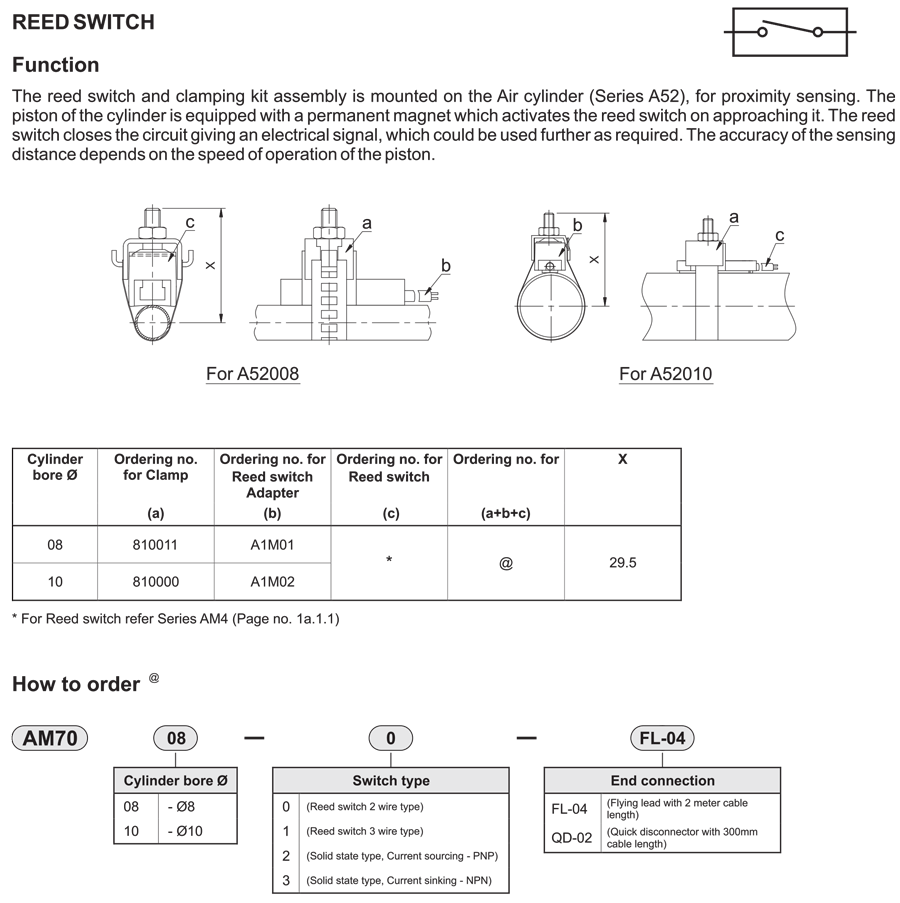

Reed switch
How to order guide
