Standard Cylinder A12, A13

Home / Products / FA Pneumatics / Air Cylinders / ISO 6431 Tie Rod / Standard Cylinder A12, A13

Standard Cylinder A12, A13

Ask Quote Download Brochure
  • As per ISO 6431 / CETOP RP43P, RP53P standards
  • Adjustable cushioning at both ends
  • Wide varieties of mountings
  • Low friction
  • Long life

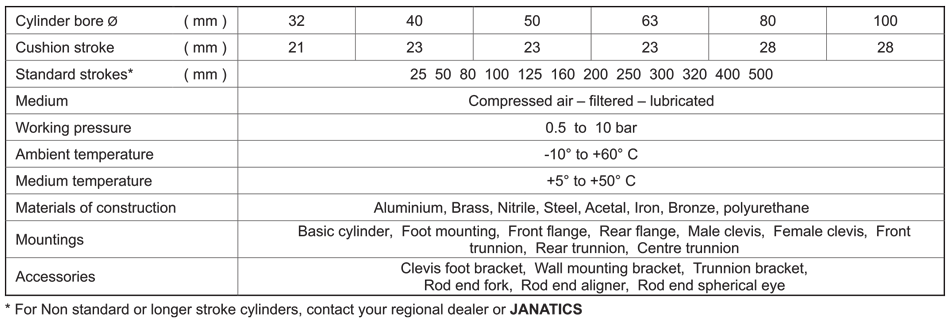

Technical Specifications Table

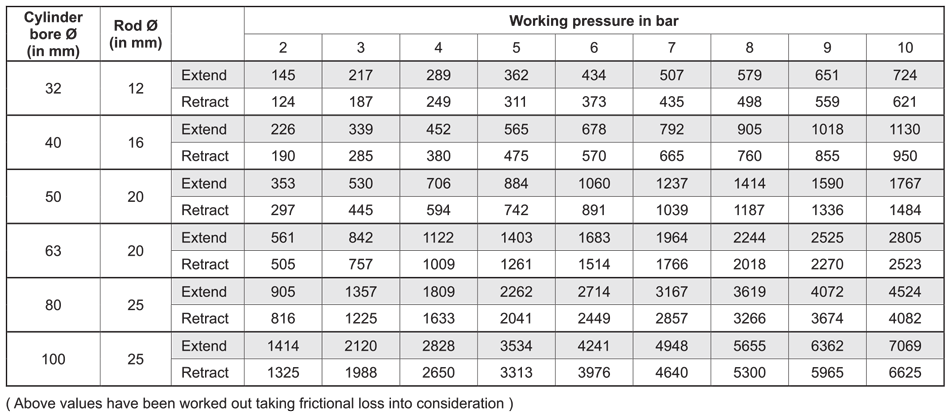

Output Force Table

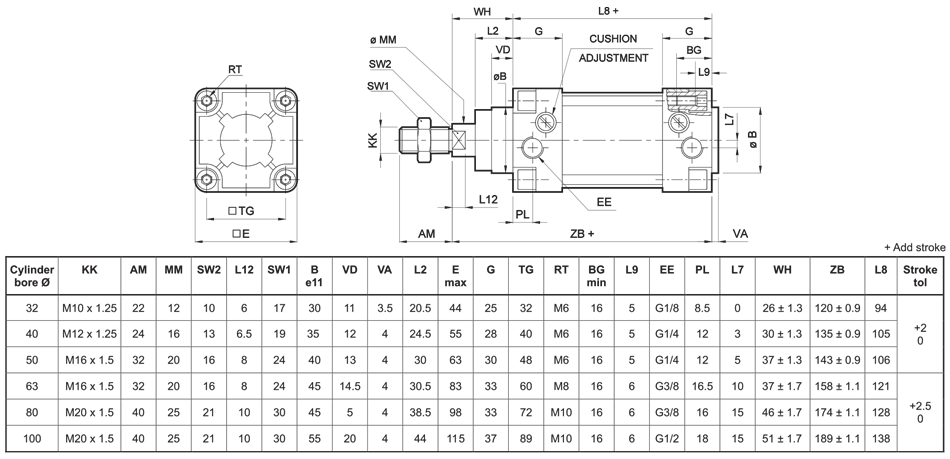

Basic Cylinder Diagram

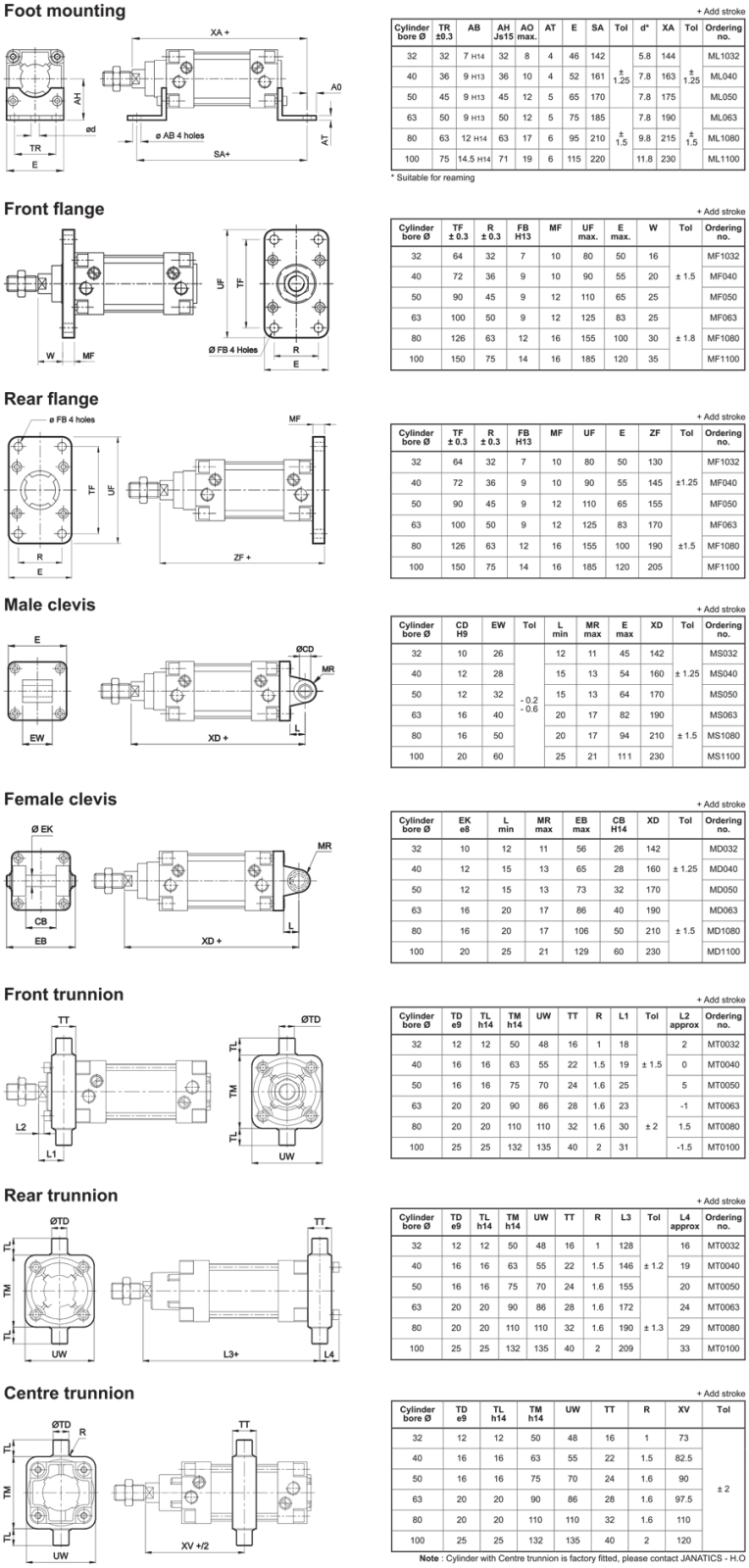

Mountings

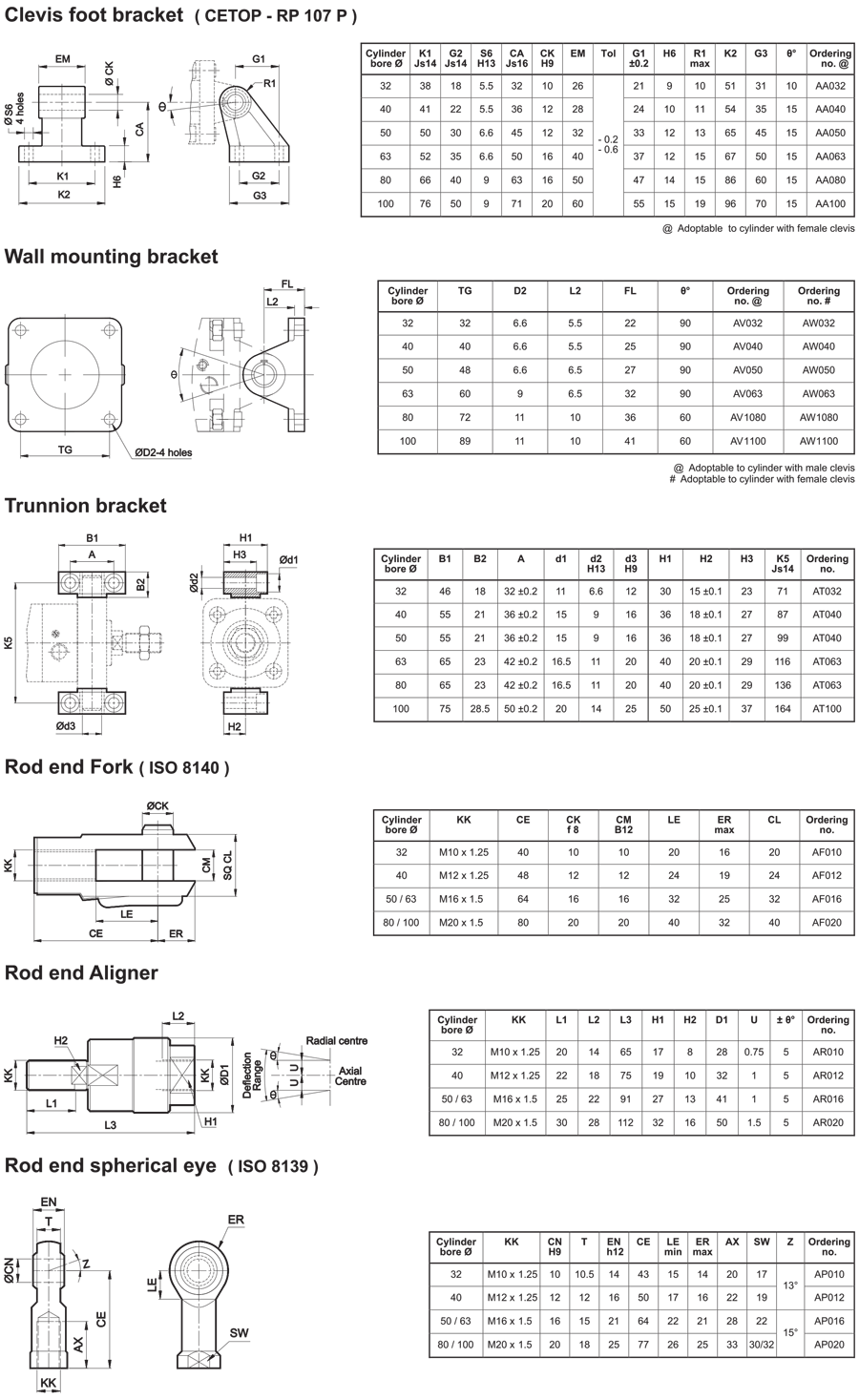

Accessories

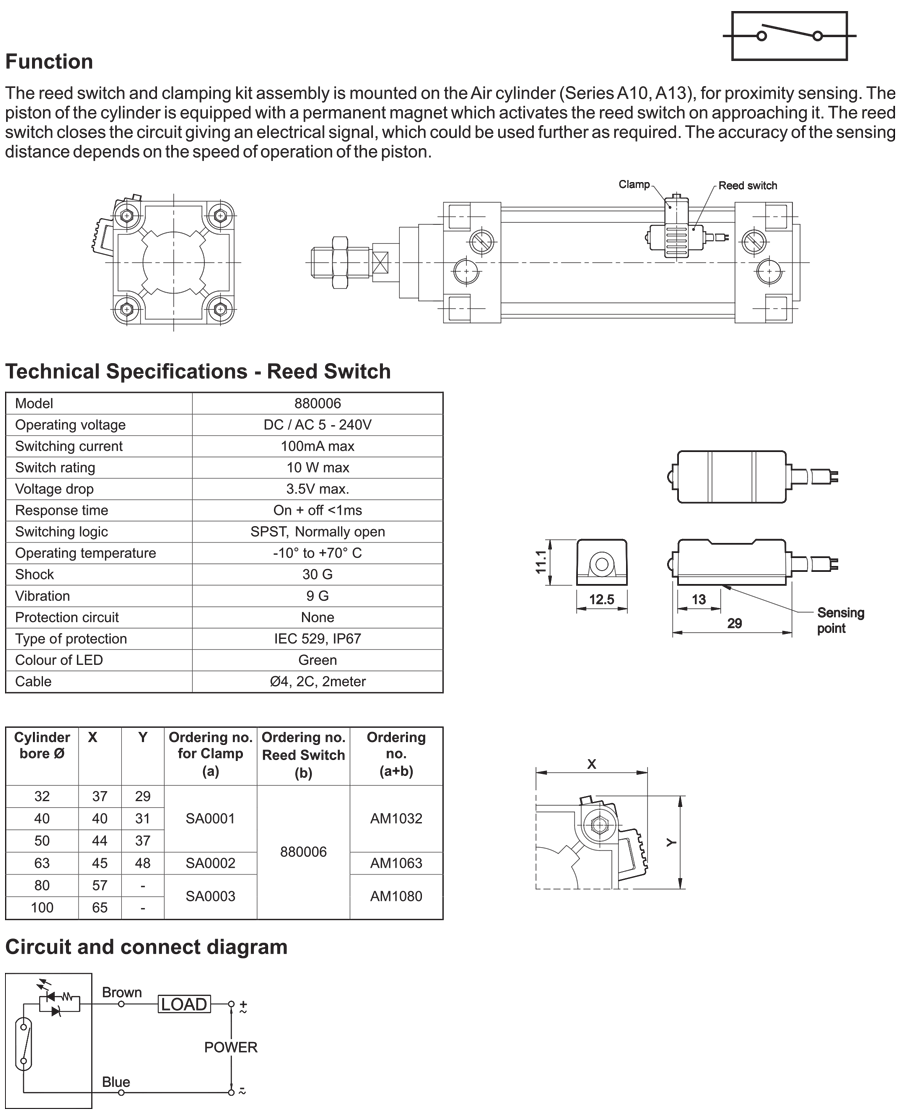

Reed Switch

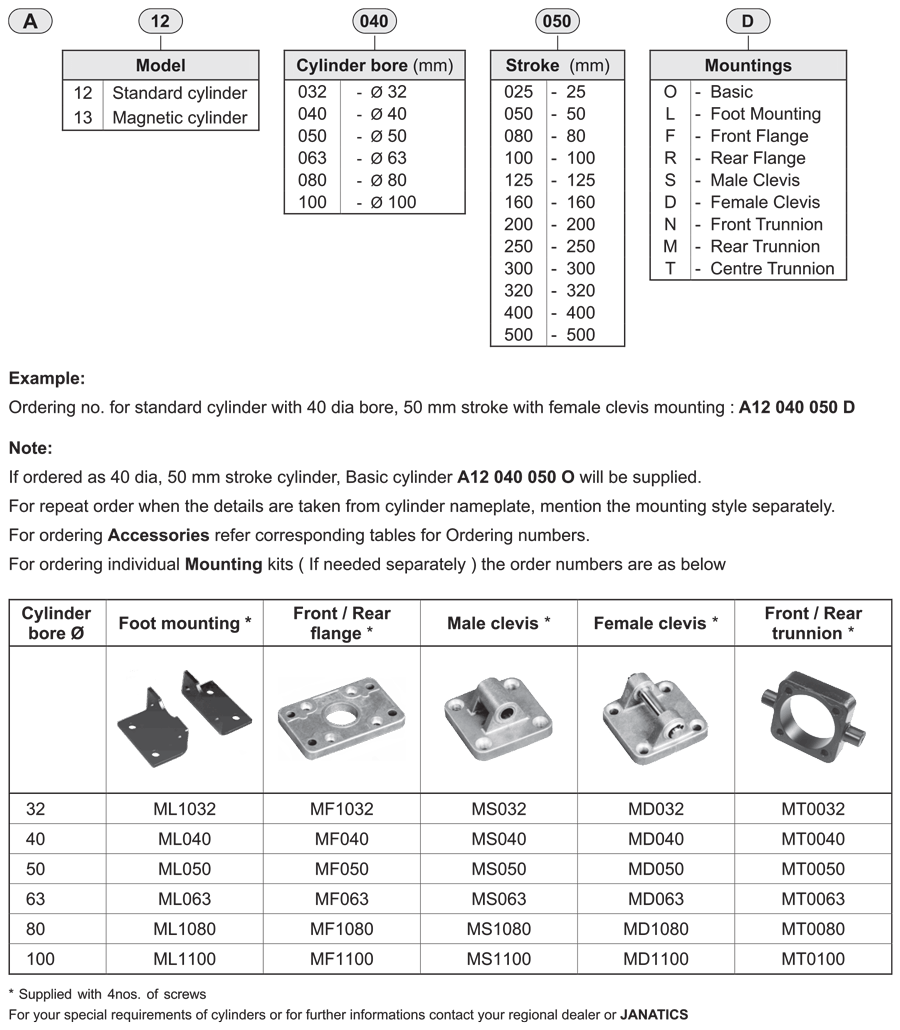

How to order guide
