Double End Cylinder A10, A11

Home / Products / FA Pneumatics / Air Cylinders / ISO 6431 Tie Rod / Double End Cylinder A10, A11

Double End Cylinder A10, A11

Ask Quote Download Brochure
  • Double Acting – Ø32-100 mm
  • Adjustable cushioning at both ends
  • Wide variety of mountings
  • Magnetic & Non Magnetic versions
  • Long life
  • Low friction

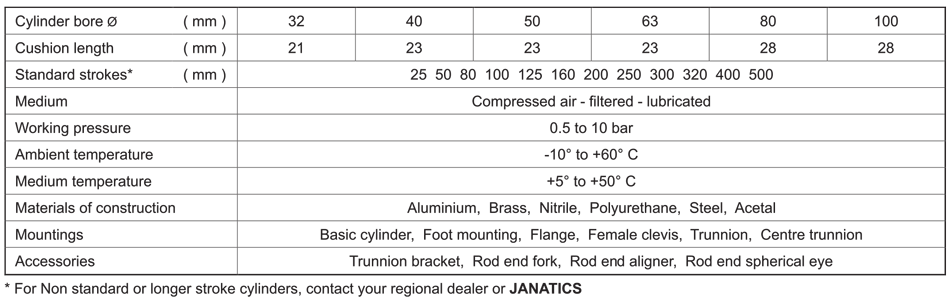

Technical Specifications Table

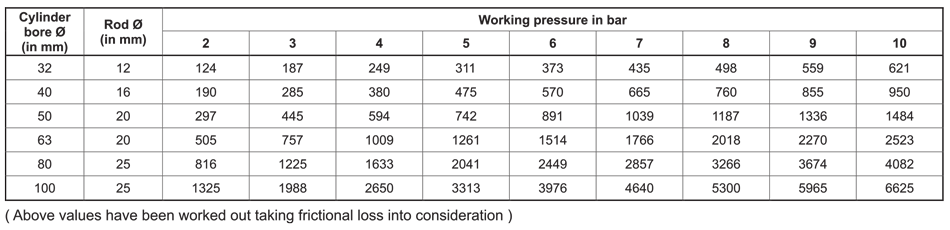

Output Force Table

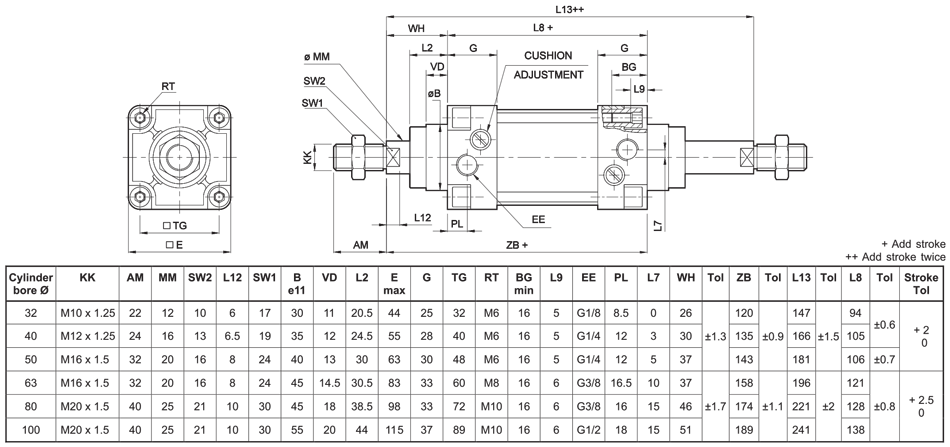

Basic Cylinder Diagram

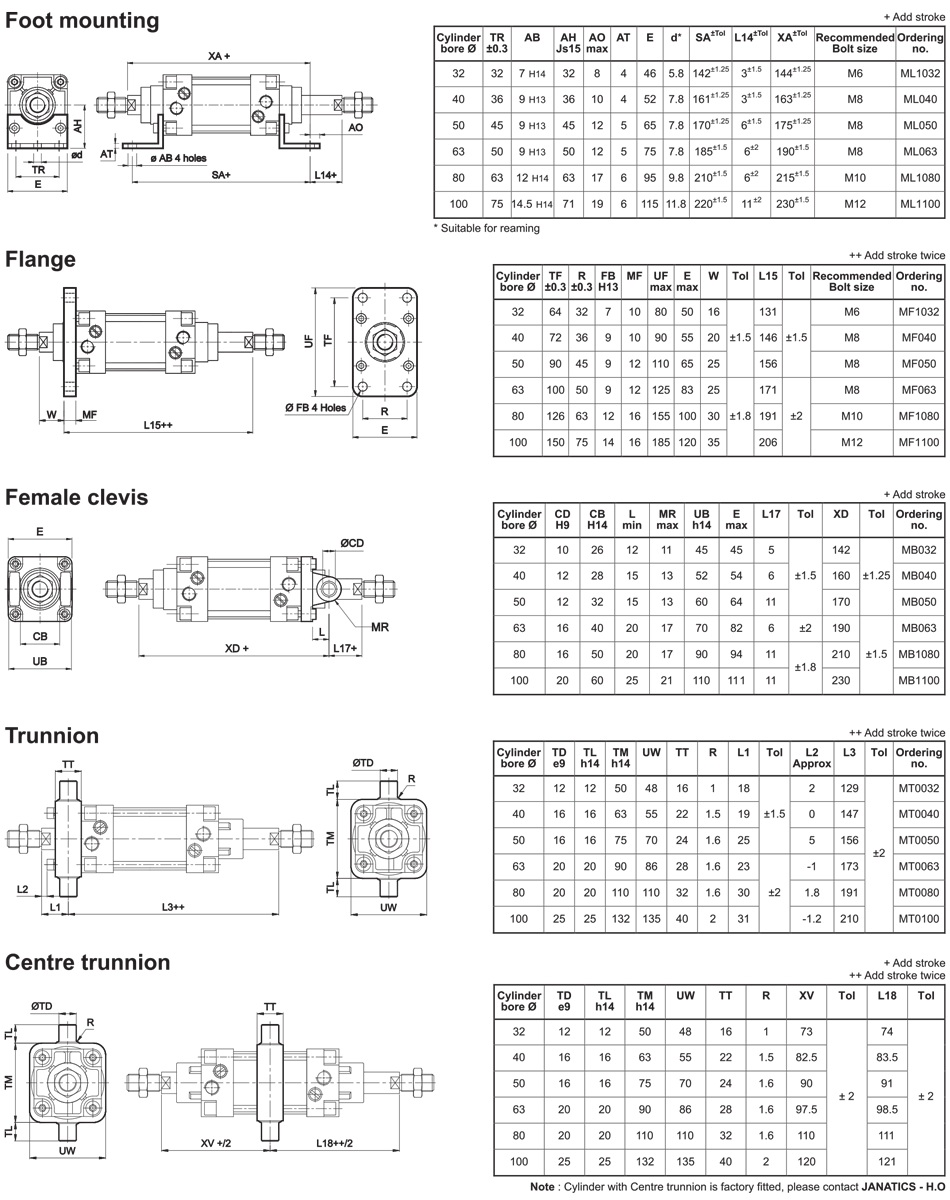

Mountings

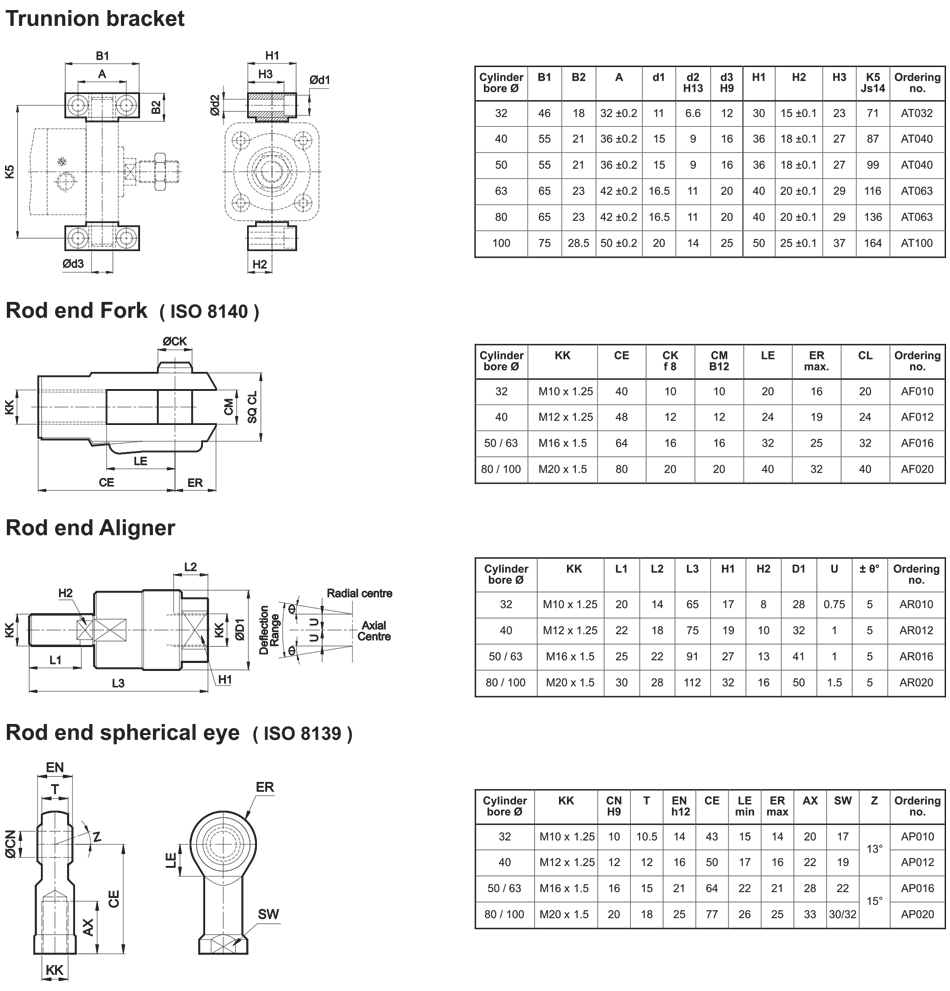

Accessories

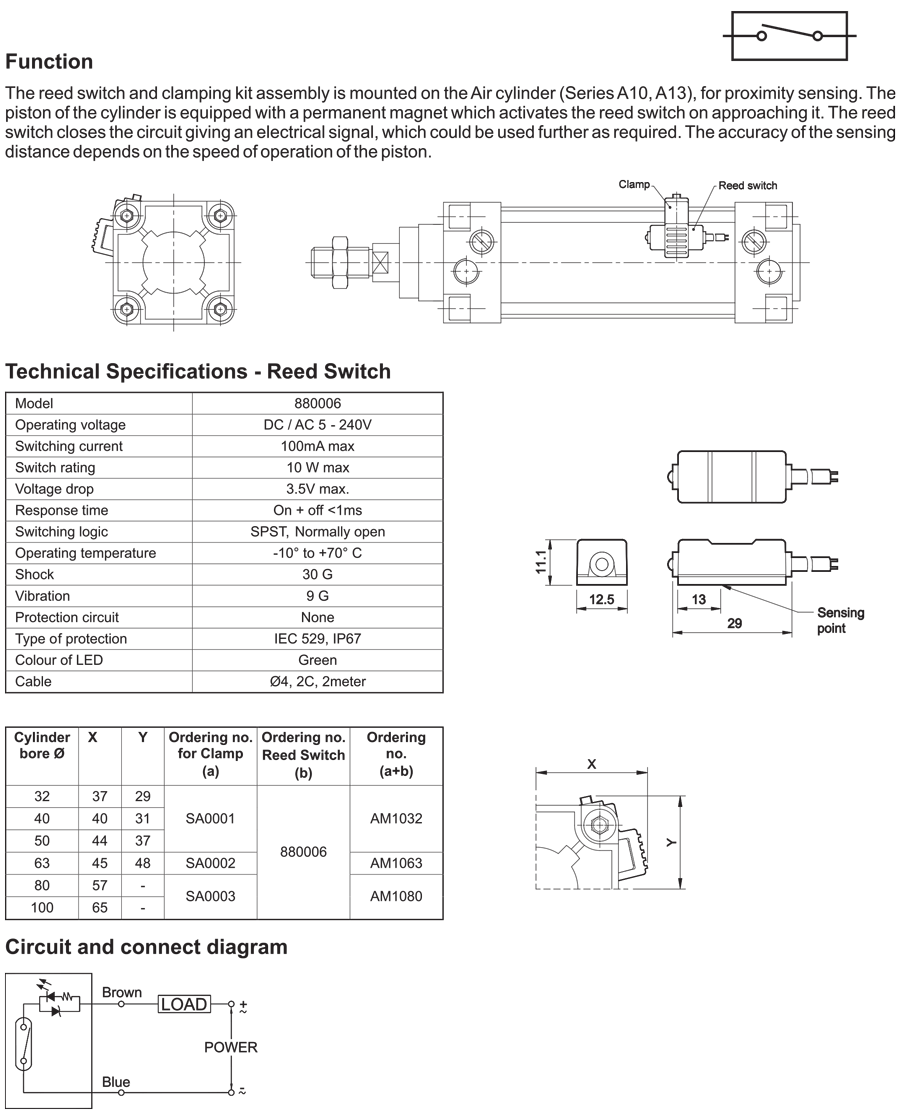

Reed Switch

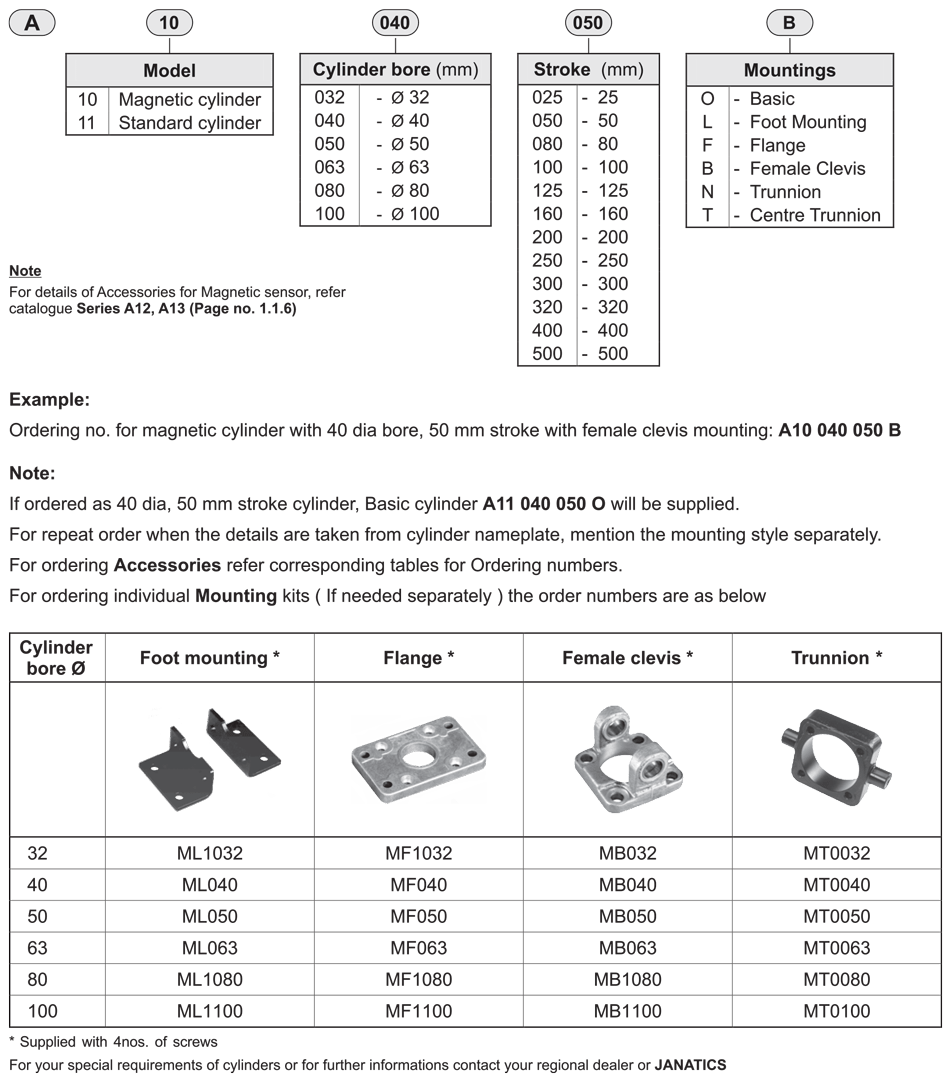

How to order guide
