Compact ISO Cylinder A63, A64

Compact ISO Cylinder A63, A64

  • Double Acting Cylinders (Compact ISO type) Ø25 – 100 mm
  • As per ISO 21287 standards
  • Elastomer end cushioning
  • Wide varieties of mountings
  • Space saving
  • Magnetic & Non Magnetic versions
  • Aluminium profile (square) cylinder barrel
  • PNP & NPN Magnetic sensors are available

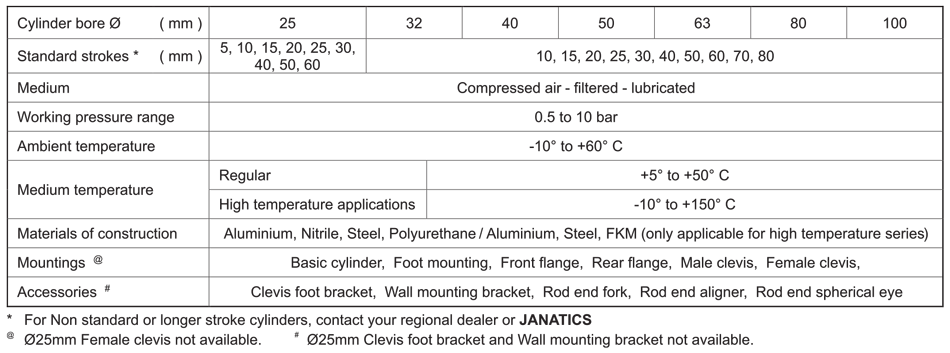

Technical Specifications Table

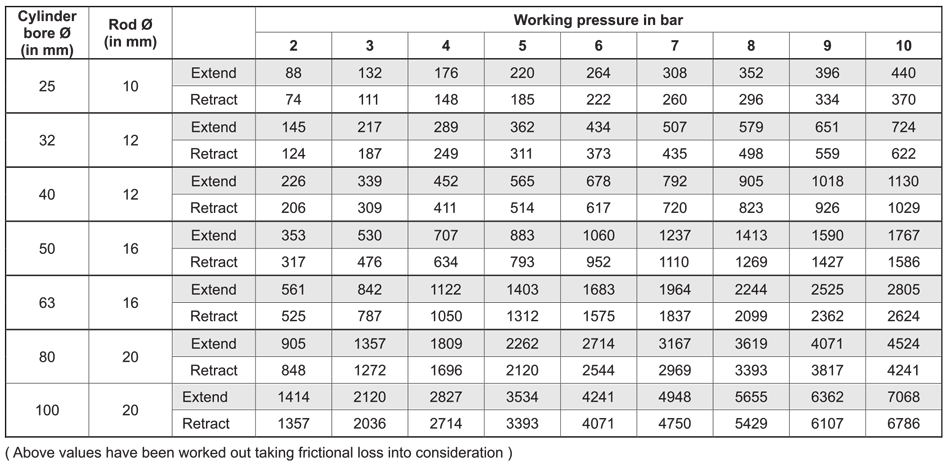

Output Force Table

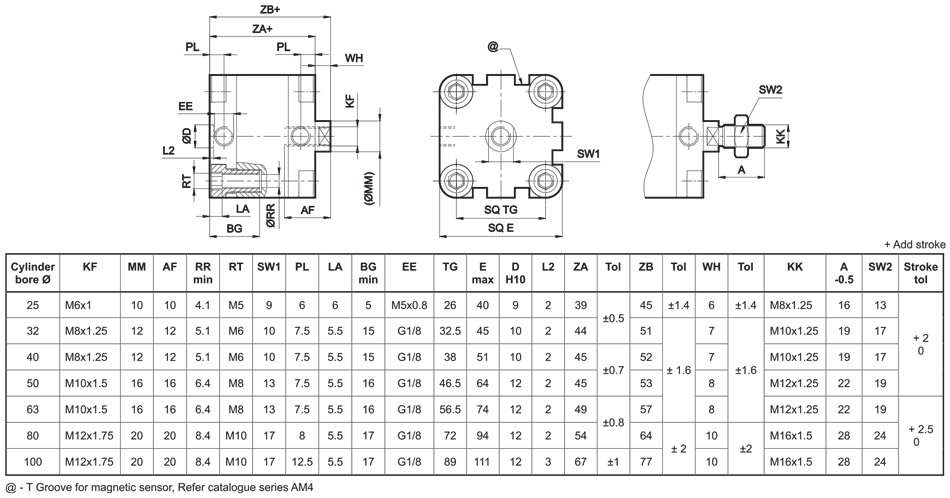

Basic Cylinder Diagram

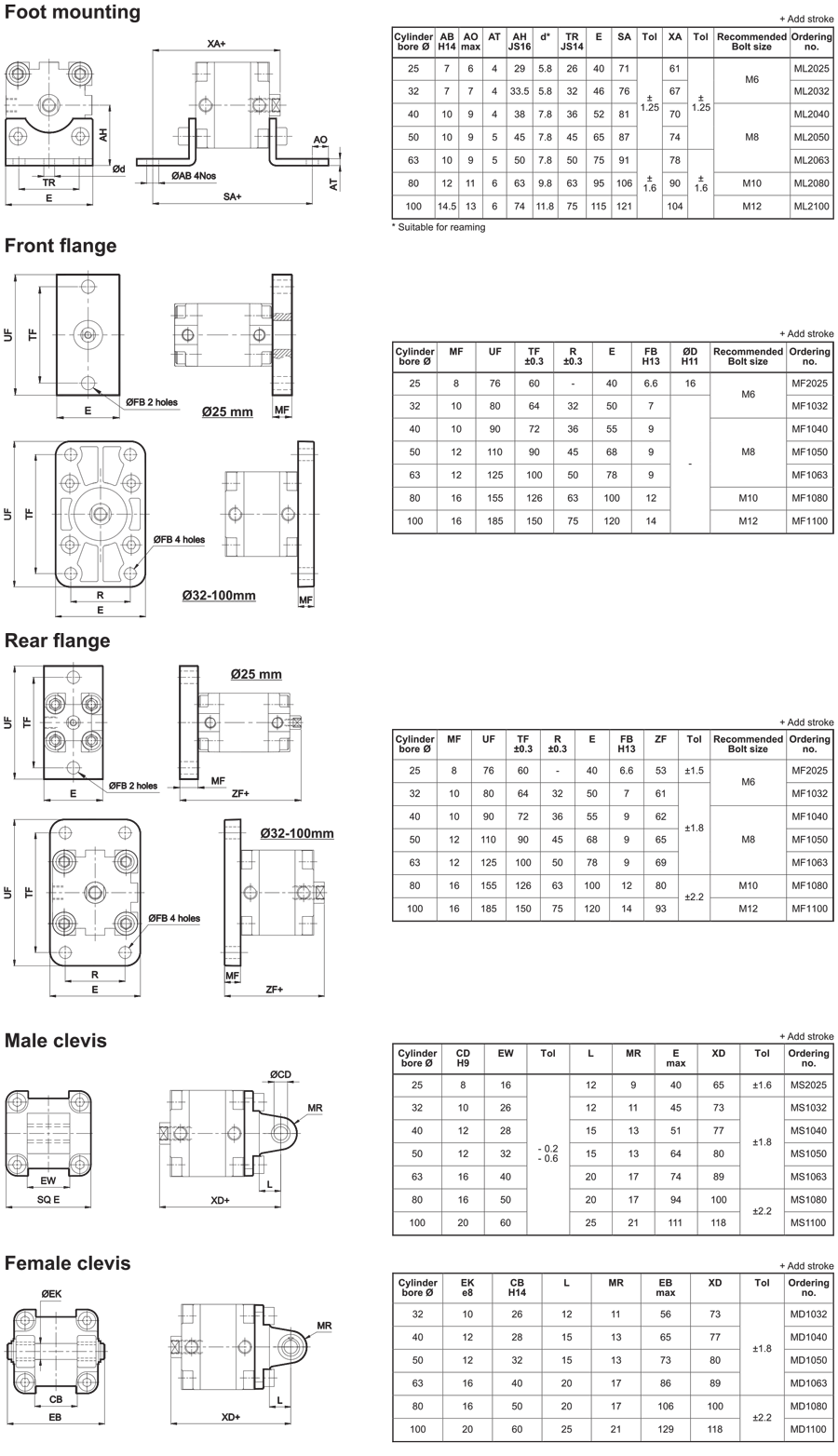

Mountings

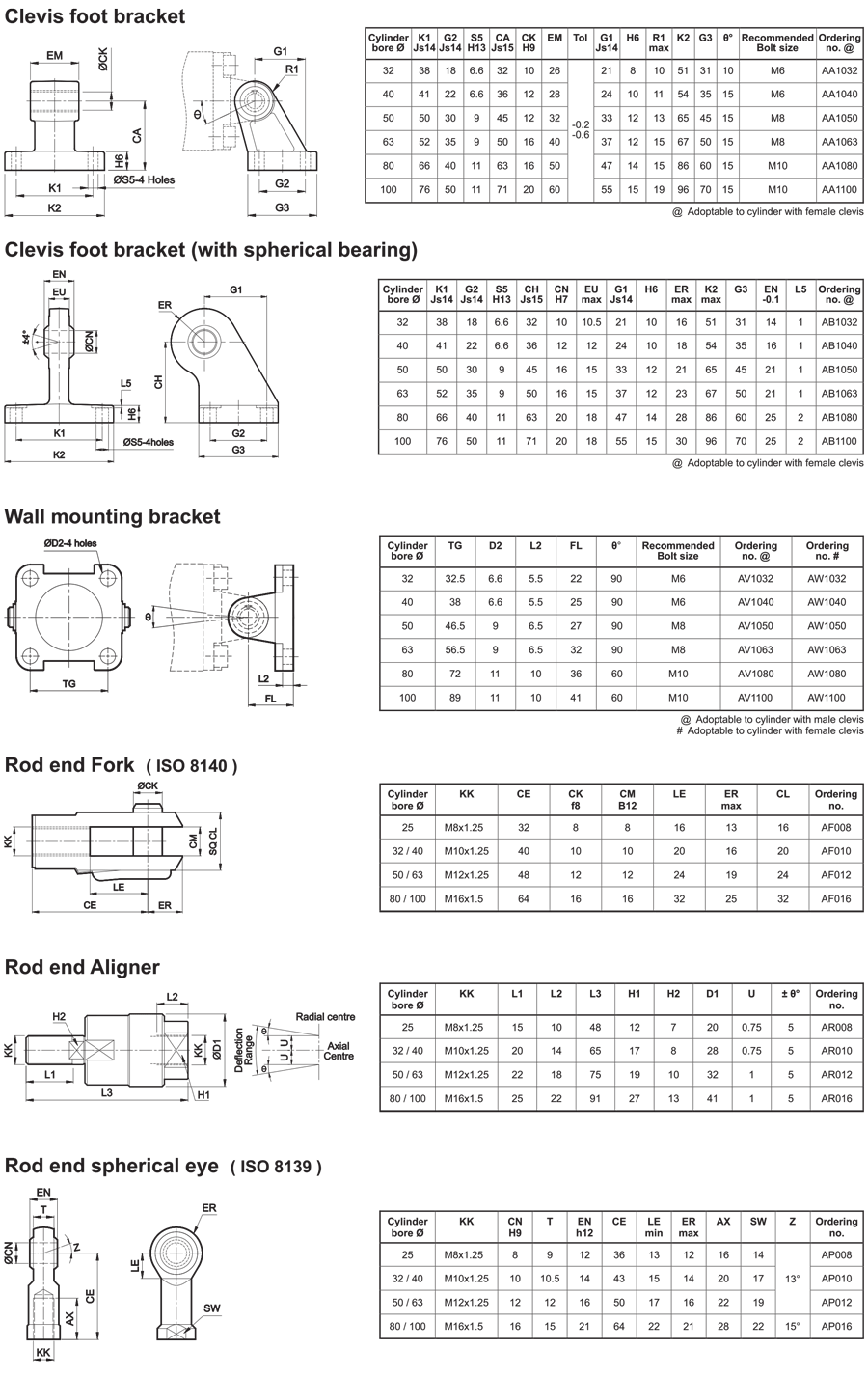

Accessories

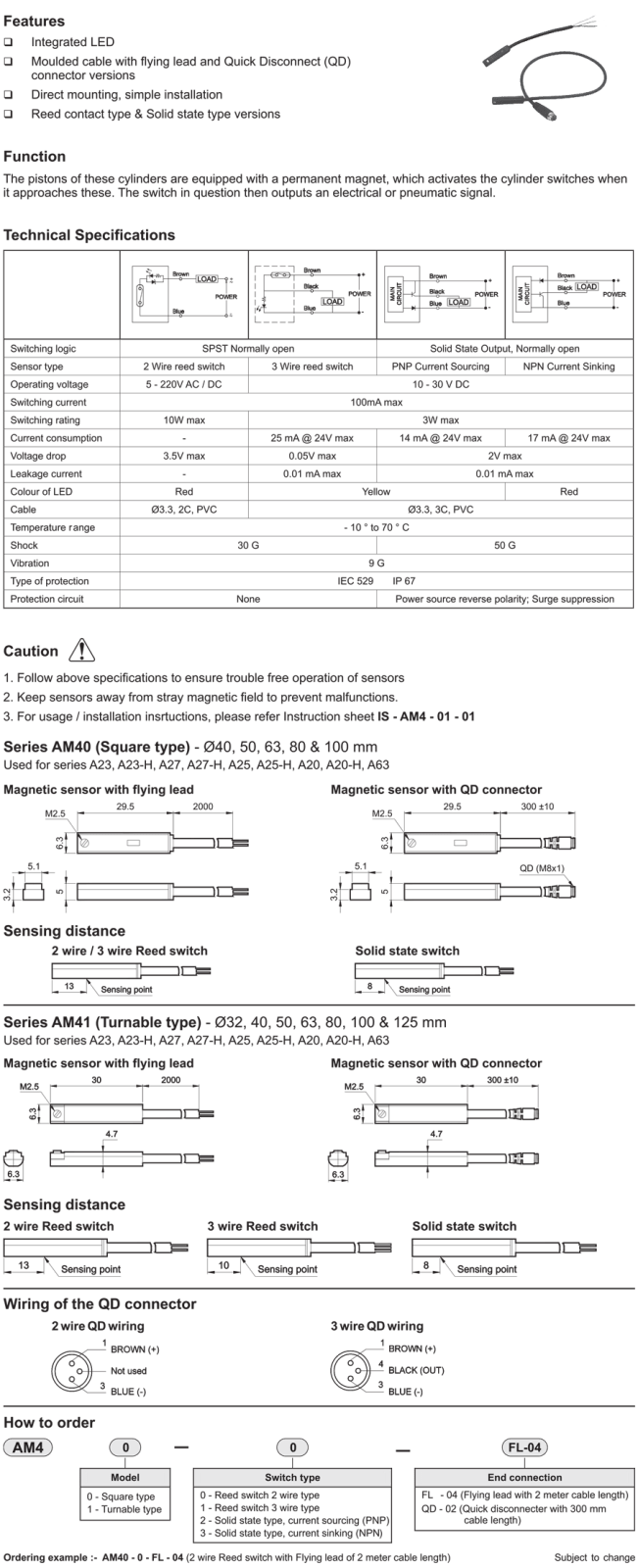

Magnetic Sensor
How to order guide
