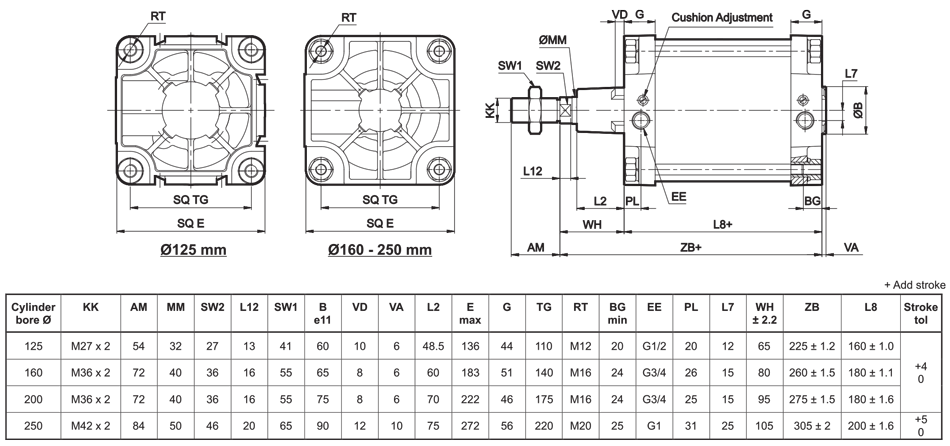

Standard Cylinder A16, A17
- AIR CYLINDERS Double Acting ( Ø125, 160, 200 ) mm
- As per ISO 15552 / VDMA 24562 standards
- Adjustable cushioning at both ends

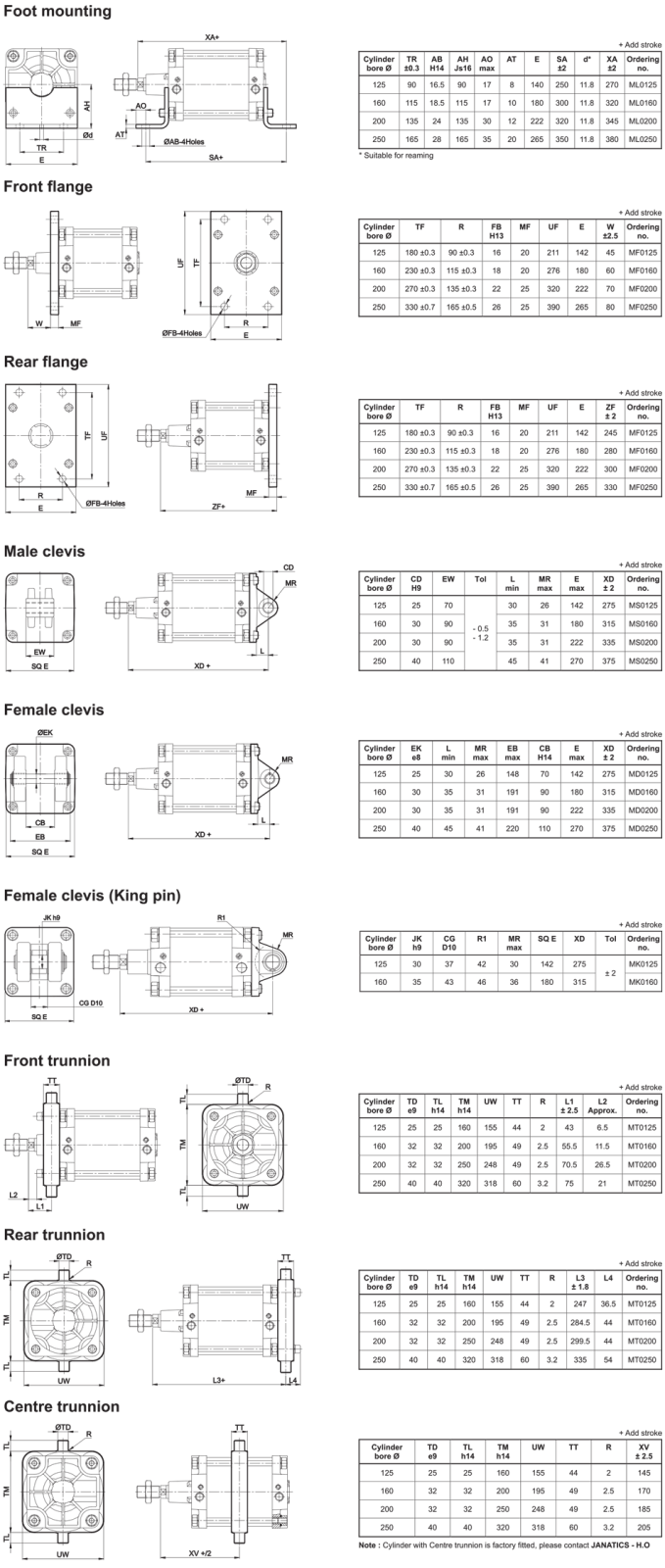

- Wide varieties of mountings
- Low friction
- Long life
- Optional – High temperature (Viton seals) 150°C max.**
- Optional – Non corrosive Stainless steel piston rod and piston rod lock nut (SS 304)**
To order a Standard Cylinder A16 or A17, please refer to the ordering guide and specify the required bore size, stroke length, and any optional features.
