Three Point Chuck

Home / Products / FA Pneumatics / Air Cylinders / Gripper / Three Point Chuck

Three Point Chuck

Ask Quote Download Brochure
  • AG3J Series – Ø16, 20, 25, 32, 40, 50, 63, 80, 100 mm
  • Constant center of gripping
  • Hard anodised body
  • Suitable for internal or external holding
  • Compact design
  • Magnetic sensing as standard

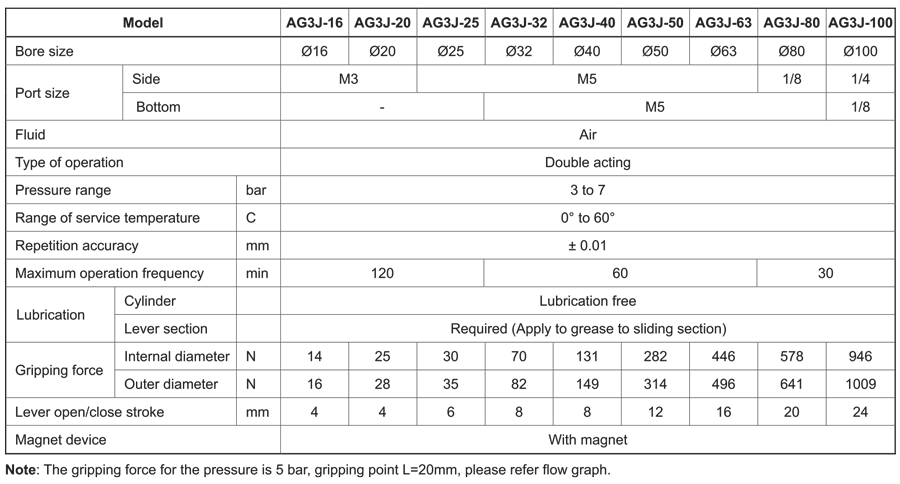

Technical Specifications Table

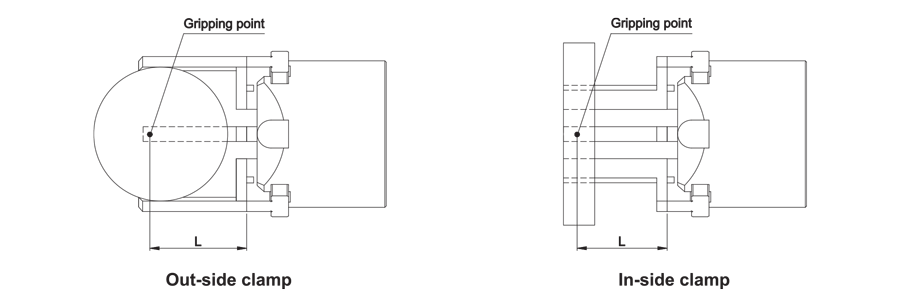

Gripping Point Diagram

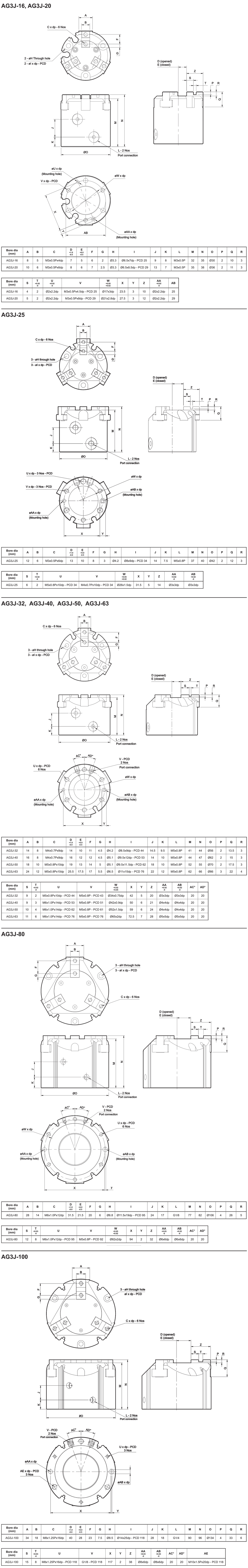

Dimensions Table

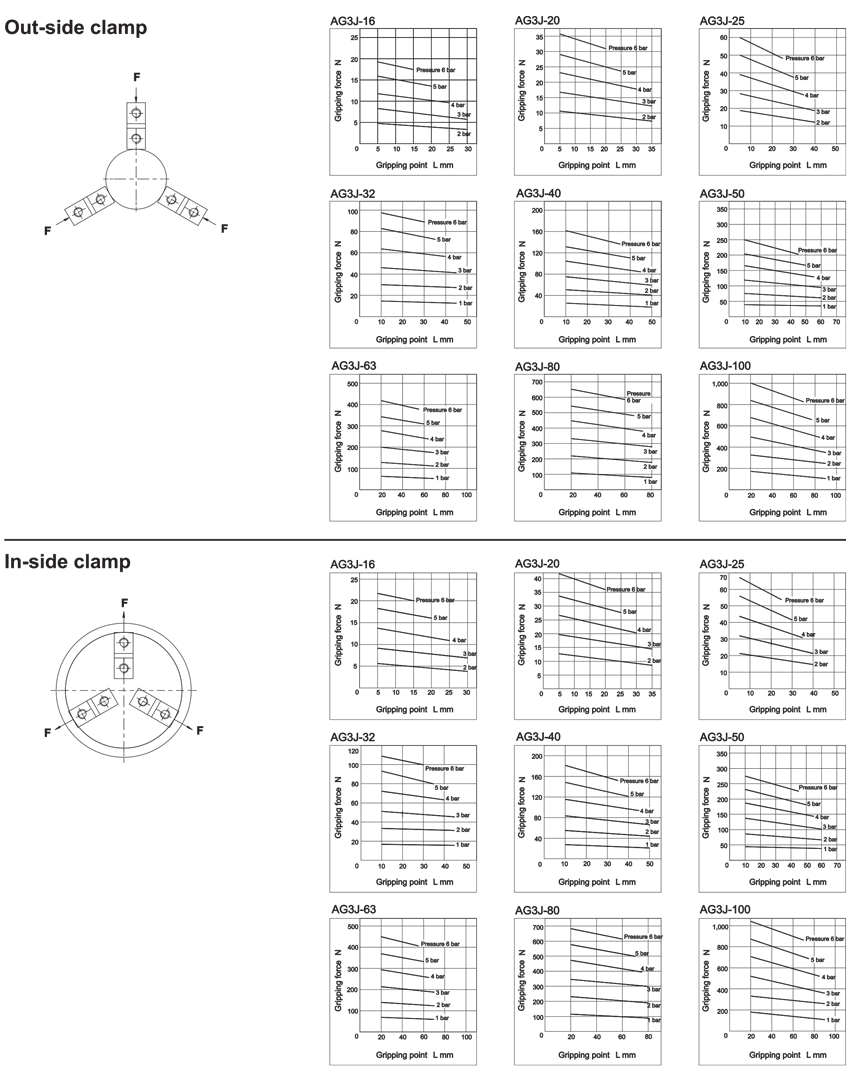

Gripping Force

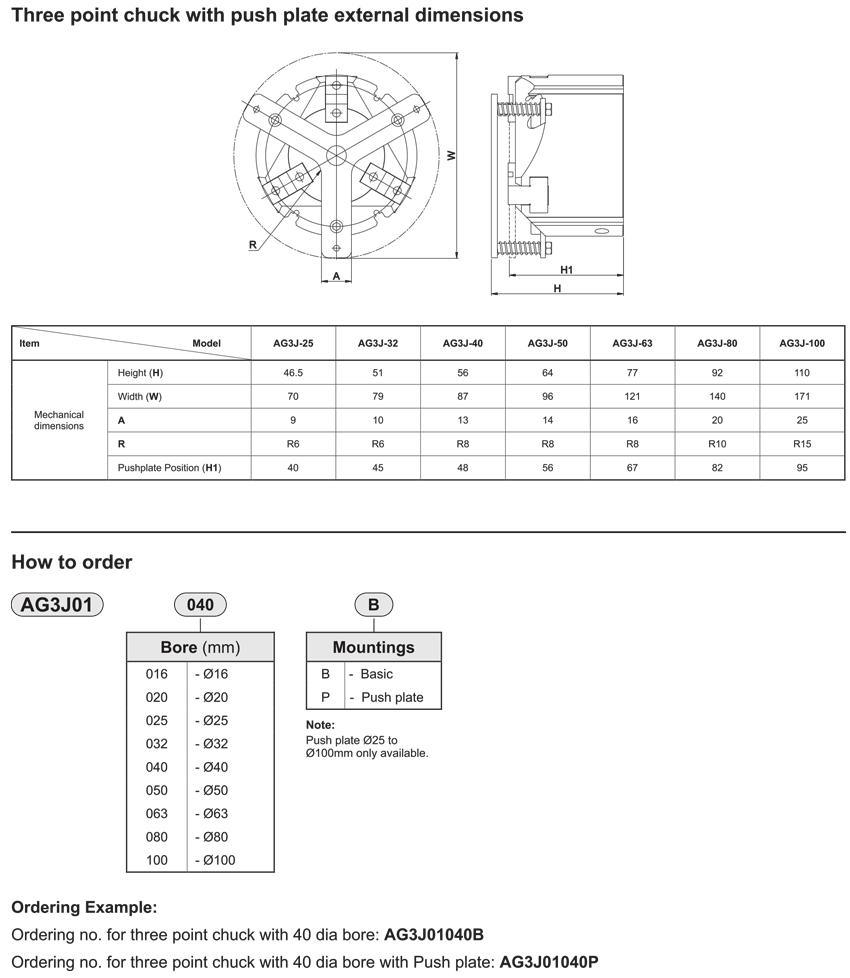

Push plate

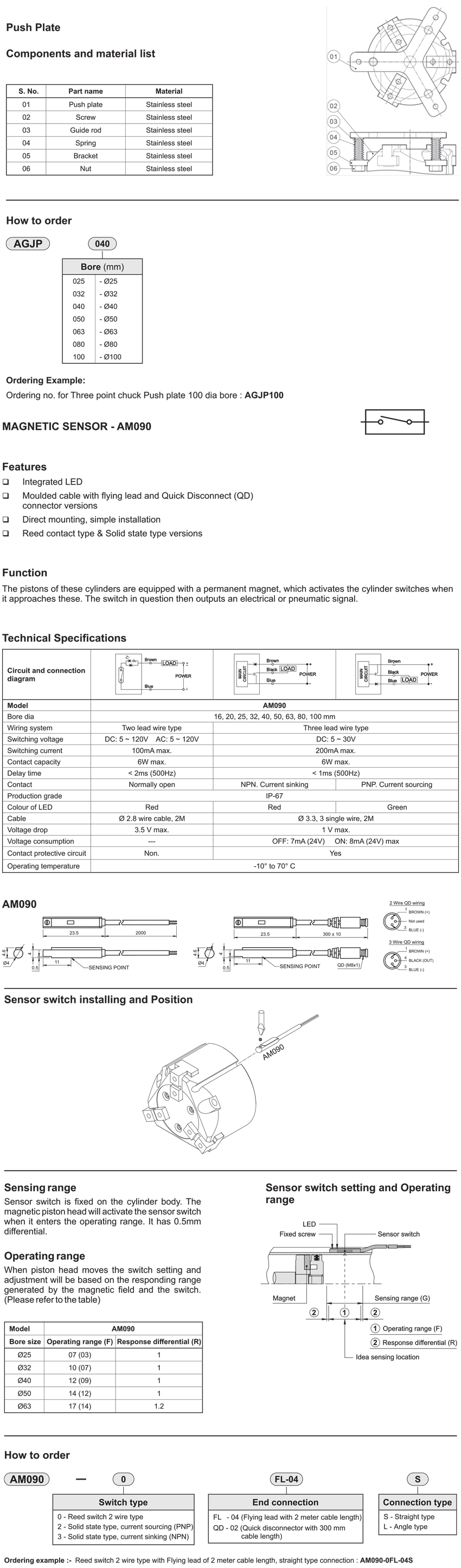

Accessories
