Compact Cylinder with Guide Rod
- Series A02G, A02G1, A02G2 (Double Acting – Ø12 – 100 mm)
- Compact, lightweight and space saving design
- Large clamping force in relation to their size
- Low friction, long life seal design
- Elastomer end cushion
- Load can be directly mounted
- A guide rod is installed to improve lateral load resistance

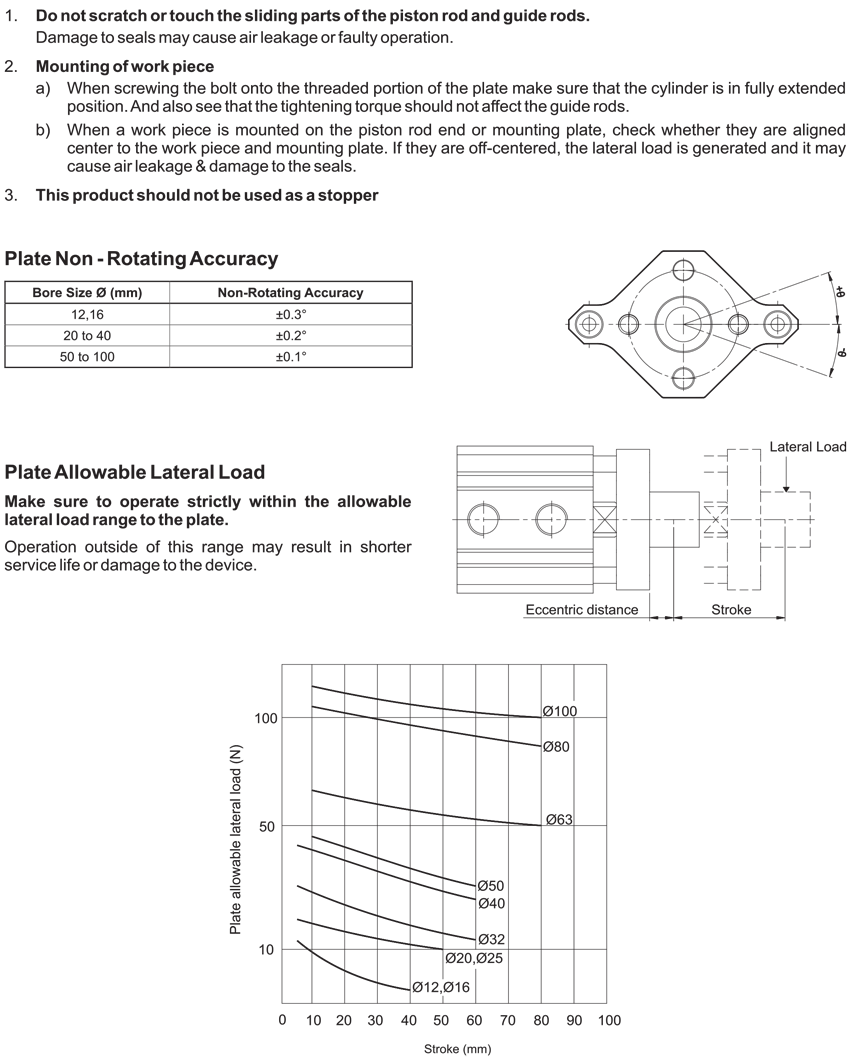

- Non-Rotating accuracy ±0.3º (or) less
These compact cylinders are widely used in low cost automation, SPMs, industrial machinery, Jigs & fixtures etc.
