Magnetic Sensors – Series AM42

Ask Quote Download Brochure
  • ACCESSORIES FOR MAGNETIC CYLINDERS Series A20, A23, A60, A63
  • Integrated LED
  • Moulded cable with flying lead and Quick Disconnect (QD) connector versions
  • Direct mounting, simple installation
  • Reed contact type & Solid state type versions

The pistons of these cylinders are equipped with a permanent magnet, which activates the cylinder switches when it approaches these. The switch in question then outputs an electrical or pneumatic signal.

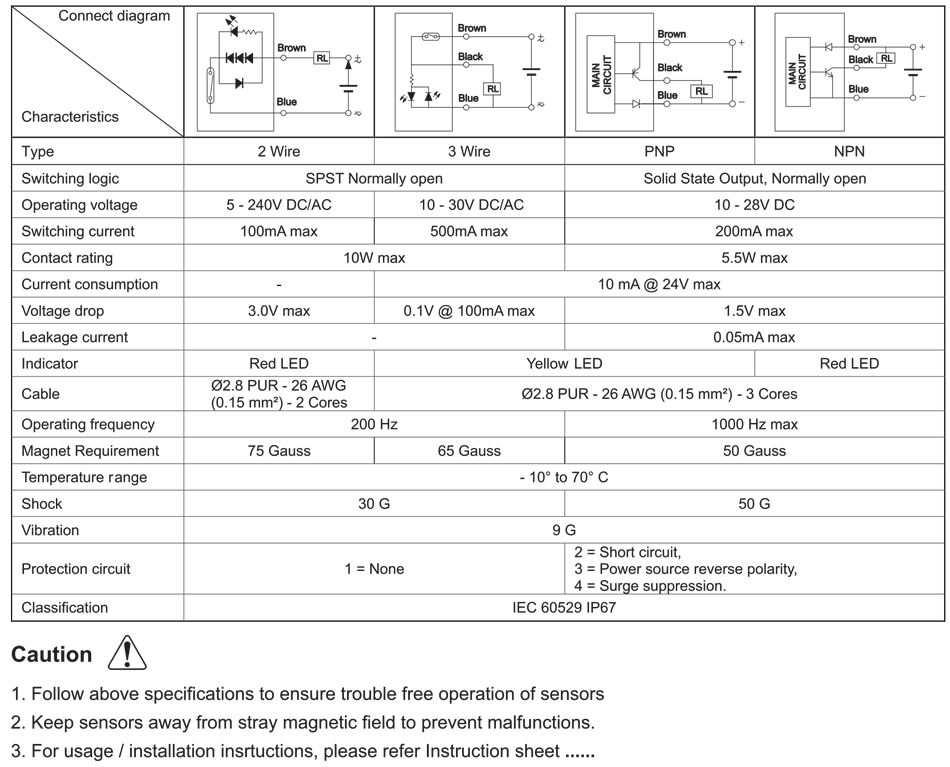

Technical Specifications Table
Dimensions Table

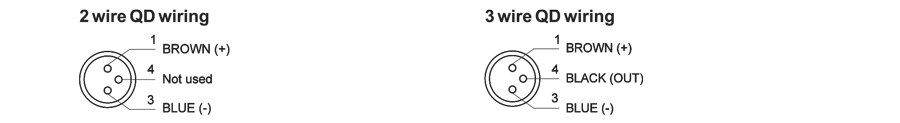

Wiring of the QD connector

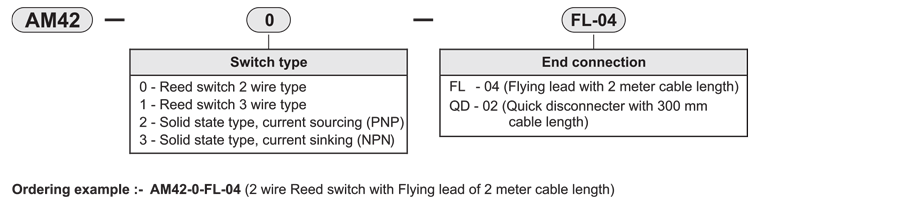

How to order guide
